🌦️ BMP280 Sensor Module
High-Precision Pressure • Temperature • Altitude Sensor

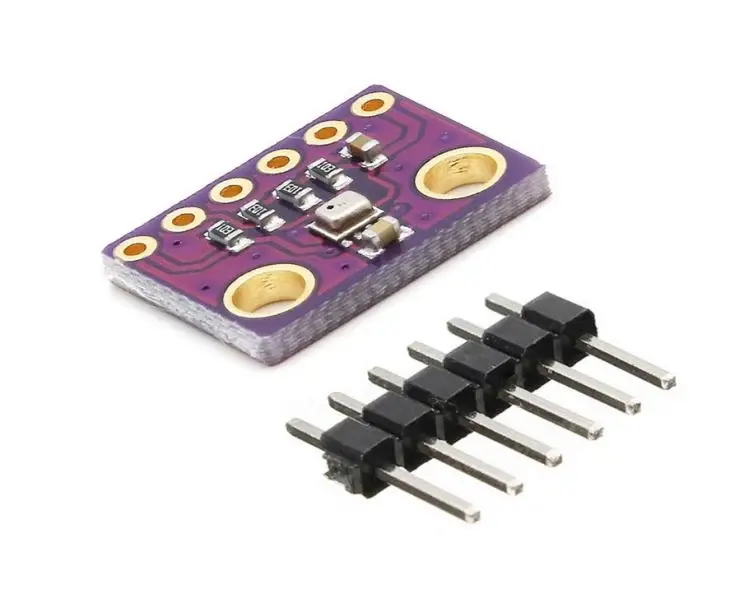

The BMP280 Sensor Module is a compact barometric pressure and temperature sensor designed for high accuracy and low power consumption. It is commonly used in weather monitoring systems, drones, GPS navigation, and IoT devices to measure atmospheric pressure, temperature, and altitude.
Developed by Bosch Sensortec, the BMP280 is an upgraded version of the older BMP180 barometric pressure sensor, offering improved accuracy and lower power consumption.
📊 Infographic Overview
🔹 Basic Specifications
| Feature | Details |
|---|---|
| 🔌 Operating Voltage | 1.71V – 3.6V |
| ⚡ Power Consumption | 2.7 µA (low power mode) |
| 🌡 Temperature Range | -40°C to +85°C |
| 📊 Pressure Range | 300 – 1100 hPa |
| 🎯 Pressure Accuracy | ±1 hPa |
| 📏 Altitude Resolution | ~1 meter |
| 🔗 Communication | I2C / SPI |
🧩 Sensor Pin Configuration
| Pin | Function |
|---|---|
| VCC | Power supply |
| GND | Ground |
| SCL / SCK | Clock line |
| SDA / SDI | Data line |
| CSB | Chip select (SPI mode) |
| SDO | SPI data output |
⚙️ Working Principle
The BMP280 works using piezo-resistive pressure sensing technology.
Step-by-Step Process
1️⃣ Air pressure pushes on a microscopic sensing membrane.
2️⃣ The membrane deformation changes the electrical resistance of the sensor.
3️⃣ The sensor converts the resistance change into digital pressure data.
4️⃣ Built-in algorithms calculate temperature and altitude values.
5️⃣ The data is sent to a microcontroller through I2C or SPI communication.
📐 Sensor Module Layout
BMP280 Sensor Module
┌─────────────────────┐
│ BMP280 Sensor Chip │
│ (Pressure + Temp) │
└─────────────────────┘
Communication Interface
I2C / SPI Protocol
┌─────┬─────┬─────┬─────┬─────┐
│ VCC │ GND │ SCL │ SDA │ CSB │
└─────┴─────┴─────┴─────┴─────┘
📊 What the Sensor Measures
| Measurement | Description |
|---|---|
| 🌡 Temperature | Ambient temperature |
| 🌍 Atmospheric Pressure | Air pressure in hPa |
| ⛰ Altitude | Height above sea level (calculated from pressure) |
🤖 Common Applications
🌦 Weather monitoring stations
🛰 Drone altitude measurement
📱 Smartphone weather sensing
🧭 GPS navigation systems
🌍 Environmental monitoring
🚀 IoT altitude measurement projects
🔌 Compatible Microcontrollers
The BMP280 module easily connects to many development boards:
Arduino Uno
ESP32
Arduino Nano
Raspberry Pi
💡 Advantages
✅ High measurement accuracy
✅ Very low power consumption
✅ Small and lightweight module
✅ Supports both I2C and SPI communication
✅ Suitable for battery-powered IoT devices
⚠️ Limitations
❌ Cannot measure humidity
❌ Sensitive to sudden temperature changes
❌ Requires calibration for very accurate altitude readings
📊 BMP280 vs Older Sensor
| Feature | BMP280 | BMP180 |
|---|---|---|
| Accuracy | Higher | Moderate |
| Power Consumption | Lower | Higher |
| Pressure Range | 300–1100 hPa | 300–1100 hPa |
| Temperature Range | Wider | Narrower |
🔧 Example Project Idea
🌦 IoT Weather Monitoring Station
Components
BMP280 Sensor Module
ESP32
OLED Display
WiFi Connection
Cloud Dashboard
Functions
✔ Display temperature and pressure
✔ Calculate altitude
✔ Upload weather data to the cloud
✔ Real-time monitoring via smartphone
