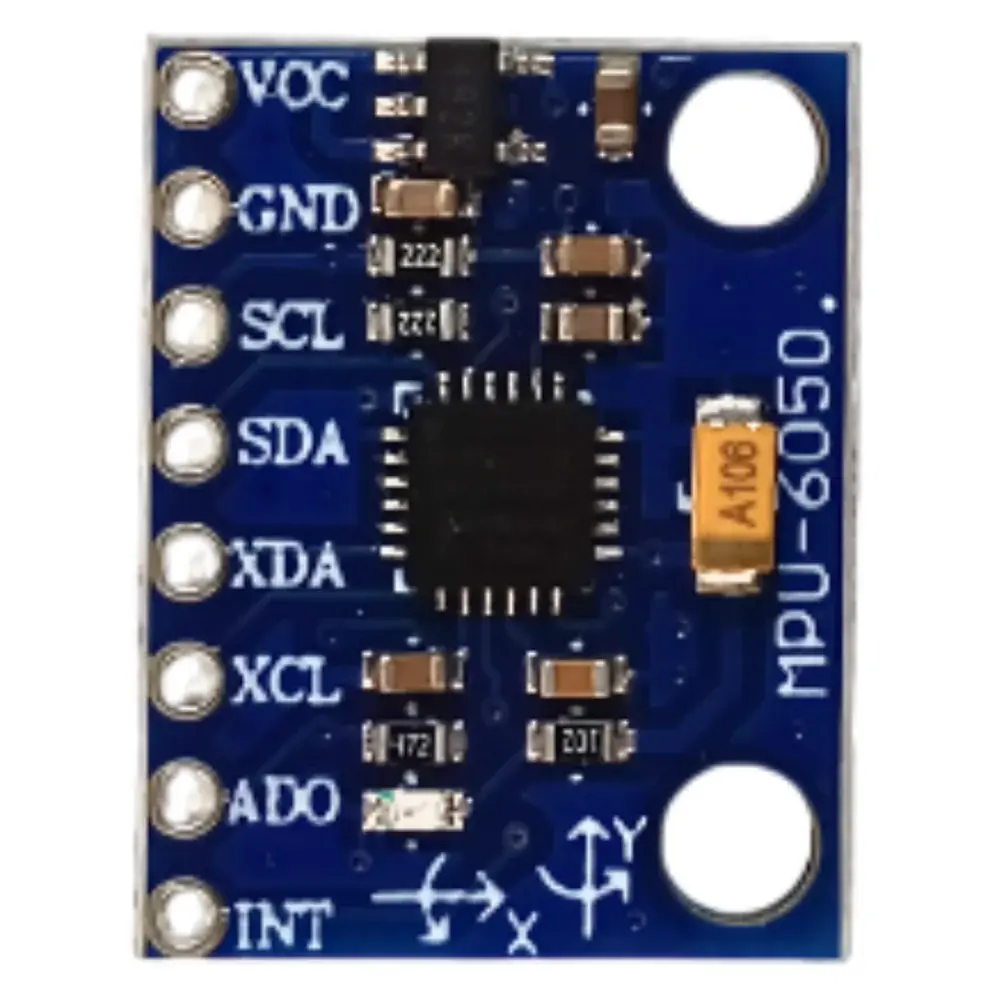

MPU-6050 Triple-Axis Accelerometer & Gyroscope Module
🧭 MPU-6050 Triple-Axis Accelerometer & Gyroscope Module
Motion Tracking • Orientation Detection • Robotics & Drones
The MPU-6050 Triple-Axis Accelerometer and Gyroscope Module is a widely used 6-axis motion tracking sensor that combines a 3-axis accelerometer and a 3-axis gyroscope in a single chip. It is commonly used in drones, robotics, smartphones, gaming controllers, and IoT motion detection systems.
The sensor was developed by InvenSense (now part of TDK Corporation) and communicates with microcontrollers using the I²C protocol.
📊 Infographic Overview
🔹 Basic Specifications
| Feature | Details |
|---|---|
| 🔌 Operating Voltage | 3V – 5V |
| ⚡ Current Consumption | ~3.9 mA |
| 📡 Communication | I²C Interface |
| 🎯 Accelerometer Range | ±2g, ±4g, ±8g, ±16g |
| 🔄 Gyroscope Range | ±250°/s, ±500°/s, ±1000°/s, ±2000°/s |
| 📐 Axes | 6 Axis (3 Accelerometer + 3 Gyroscope) |
| 📊 Resolution | 16-bit ADC |
🧩 What the Sensor Measures
| Measurement | Description |
|---|---|
| 📐 Acceleration (X, Y, Z) | Detects linear movement and tilt |
| 🔄 Angular Velocity | Detects rotation speed |
| 🧭 Orientation | Calculates device orientation |
🧩 Main Components of the Module
🔹 MPU-6050 Sensor Chip
🔹 MEMS Accelerometer
🔹 MEMS Gyroscope
🔹 Digital Motion Processor (DMP)
🔹 Voltage regulator and interface pins
🔌 Pin Configuration
| Pin | Function |
|---|---|
| VCC | Power supply |
| GND | Ground |
| SCL | I²C clock line |
| SDA | I²C data line |
| XDA | Auxiliary I²C data |
| XCL | Auxiliary I²C clock |
| AD0 | I²C address selection |
| INT | Interrupt output |
⚙️ Working Principle
The MPU-6050 uses MEMS (Micro-Electro-Mechanical Systems) technology.
Step-by-Step Operation
1️⃣ The accelerometer measures linear acceleration along X, Y, Z axes.
2️⃣ The gyroscope measures rotational velocity around the axes.
3️⃣ The internal Digital Motion Processor (DMP) processes motion data.
4️⃣ Processed data is transmitted to the microcontroller via I²C communication.
5️⃣ The microcontroller calculates orientation, tilt, and motion patterns.
📐 Sensor Axis Representation
Z Axis
↑
│
│
Y Axis ←●→ X Axis
The sensor detects motion along three directions:
X-axis → Left / Right
Y-axis → Forward / Backward
Z-axis → Up / Down
🤖 Common Applications
🚁 Drone stabilization systems
🤖 Self-balancing robots
📱 Smartphone motion detection
🎮 Gaming controllers
🚗 Vehicle motion monitoring
🧭 Navigation systems
🔌 Compatible Microcontrollers
The MPU-6050 works easily with:
Arduino Uno
ESP32
Arduino Nano
Raspberry Pi
💡 Advantages
✅ Combines accelerometer + gyroscope in one chip
✅ High precision motion sensing
✅ Built-in Digital Motion Processor (DMP)
✅ Low power consumption
✅ Compact and lightweight
⚠️ Limitations
❌ Requires sensor calibration
❌ Sensitive to vibrations
❌ No built-in magnetometer (compass)
🔧 Example Project Idea
🤖 Self-Balancing Robot
Components
MPU-6050 Sensor Module
Arduino Uno
Motor driver module
DC motors
Robot chassis
Working
✔ MPU-6050 detects tilt angle
✔ Microcontroller calculates balance position
✔ Motors adjust movement to keep robot upright
