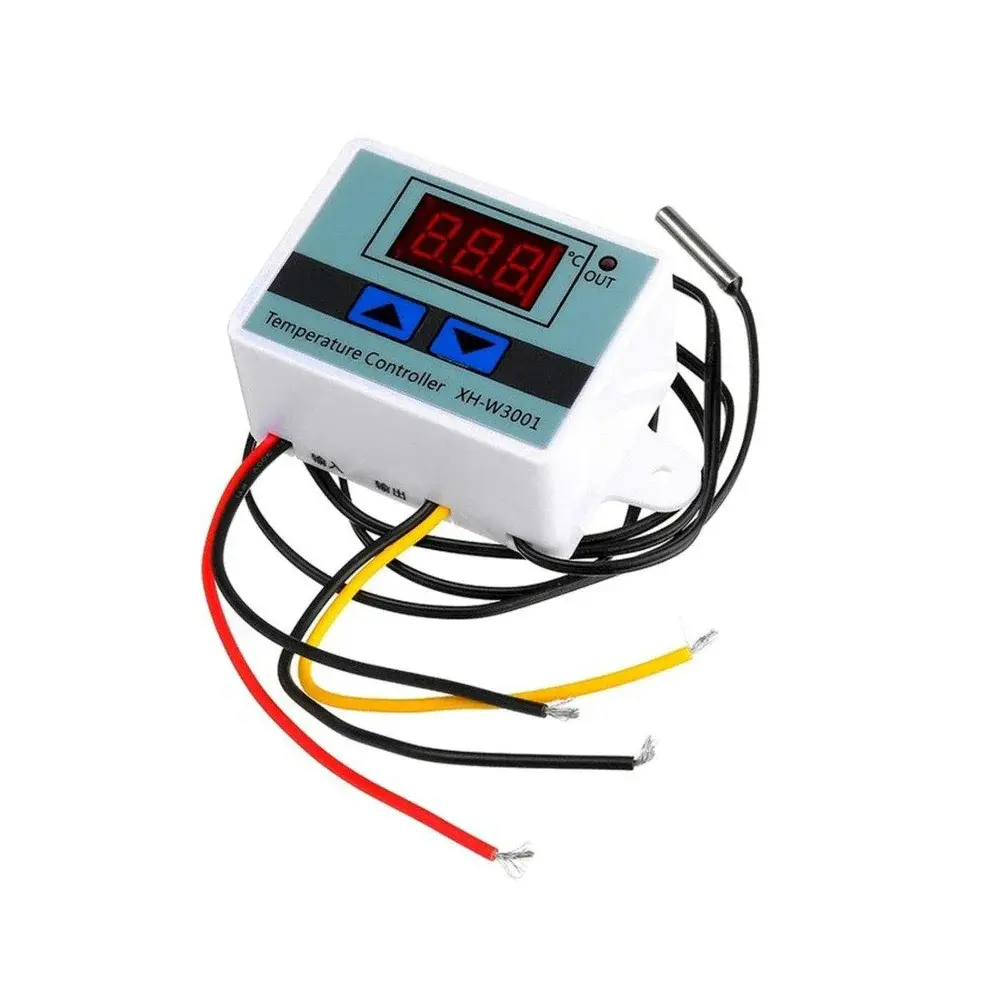

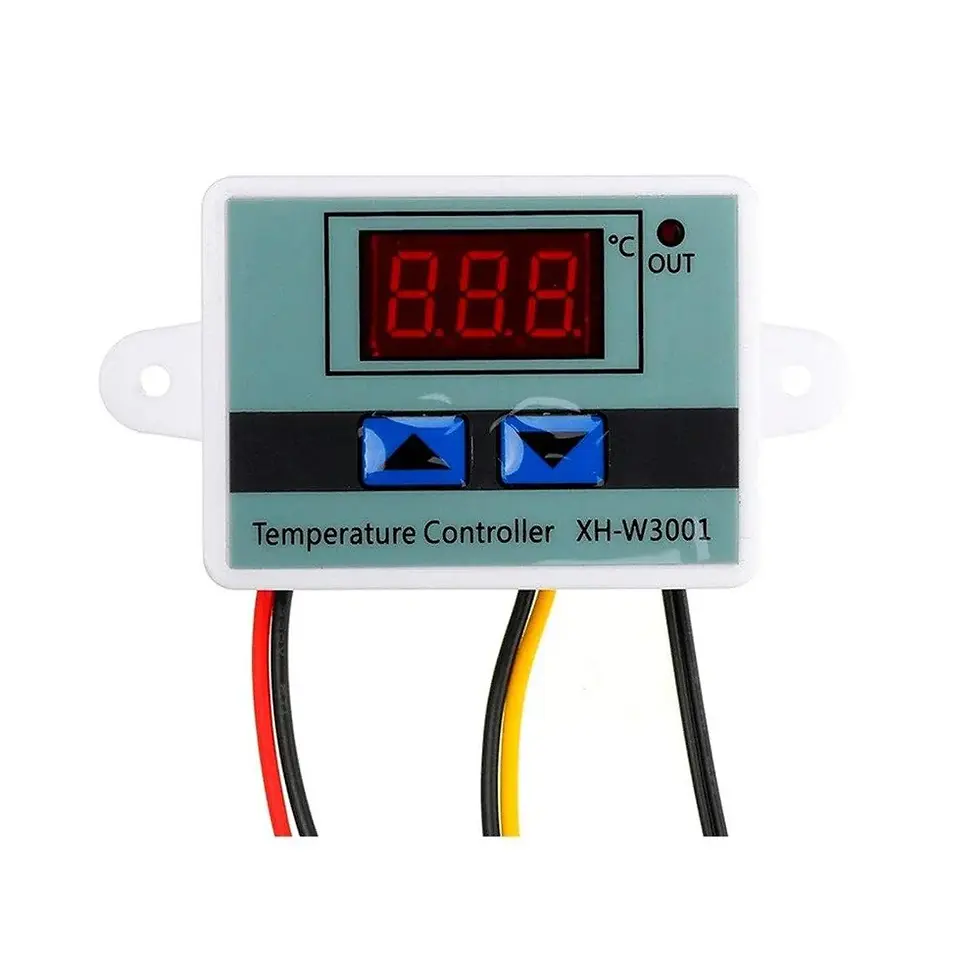

XH-W3001 24V 240W Digital Thermostat Switch

============================================================
XH‑W3001 24V 240W DIGITAL THERMOSTAT SWITCH
============================================================

Product Type:
• Digital thermostat controller** with integrated display and external temperature probe. :contentReference[oaicite:1]{index=1}

Power & Load:
• Supply Voltage:** DC 24 V :contentReference[oaicite:2]{index=2}
• Max Load Power:** 240 W (relay rated up to ~10 A) :contentReference[oaicite:3]{index=3}

Temperature Measurement:
• Sensor Type:** NTC 10 K waterproof thermistor probe (1 m cable) :contentReference[oaicite:4]{index=4}
• Measurement Range:** −50 °C to +110 °C :contentReference[oaicite:5]{index=5}
• **Control Range:** −50 °C to +110 °C :contentReference[oaicite:6]{index=6}
• **Control Accuracy:** ~±0.1 °C :contentReference[oaicite:7]{index=7}

Display & Interface:
• **Display:** 3‑digit LED temperature readout :contentReference[oaicite:8]{index=8}
• **Buttons:**
– **UP (▲):** Display or set start temperature :contentReference[oaicite:9]{index=9}
– **DOWN (▼):** Display or set stop temperature :contentReference[oaicite:10]{index=10}

Construction:
• **Housing:** ABS flame‑retardant plastic (protects electronics) :contentReference[oaicite:11]{index=11}
• **Probe:** Stainless‑steel sleeved waterproof sensor for reliable contact :contentReference[oaicite:12]{index=12}

Basic Operation:
1. **Set Start Temp:** Short press UP to view; long press to adjust. :contentReference[oaicite:13]{index=13}
2. **Set Stop Temp:** Short press DOWN to view; long press to adjust. :contentReference[oaicite:14]{index=14}
3. The internal relay toggles the output based on temperature relative to the settings.

Status Indicators:
• **“LLL”** on display = probe error/fault. :contentReference[oaicite:15]{index=15}
• **“HHH”** on display = temperature reading beyond range. :contentReference[oaicite:16]{index=16}

Typical Use Cases:
• Heating control in **refrigeration units** and incubators. :contentReference[oaicite:17]{index=17}
• Temperature regulation for **aquaculture/seafood machines**. :contentReference[oaicite:18]{index=18}
• Industrial temperature measurement and panel control. :contentReference[oaicite:19]{index=19}

Installation Notes:
• Install in instrument panels or control boxes with screw terminals. :contentReference[oaicite:20]{index=20}
• Ensure correct polarity and secure connections to probe and load.
• Stay within 24 V and 240 W load ratings for safe operation.

Approx. Dimensions:
• **Display Module:** ~60 × 45 × 31 mm. :contentReference[oaicite:21]{index=21}
• **Probe Cable:** ~1 m stainless steel. :contentReference[oaicite:22]{index=22}
