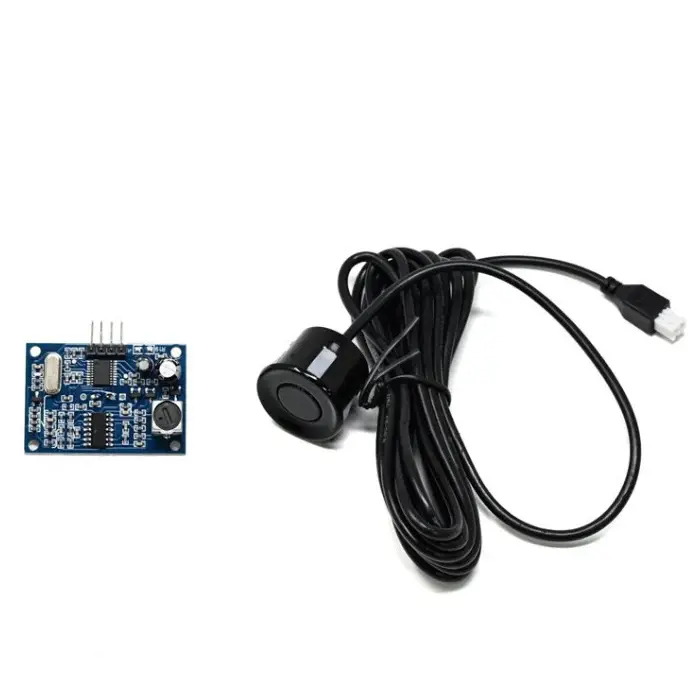

Waterproof Ultrasonic Sensor

What Is a Waterproof Ultrasonic Sensor?

• A waterproof ultrasonic sensor is a distance measuring device that uses ultrasonic sound waves (typically 40kHz) to detect objects without contact.

• The core principle: it sends ultrasonic pulses and measures the time it takes for echoes to return, then calculates the distance using the speed of sound.

• Unlike standard hobby ultrasonic modules (like HC'SR04), waterproof sensors have sealed or enclosed transducer heads, allowing use in wet, dusty, or outdoor environments.

Key Features

Waterproof/Weather'Resistant: Sensor heads often meet IP66/IP67 levels, enabling operation in rain or splashes (not necessarily full immersion of electronics). Wide Detection Range:, depending on model. 40kHz Ultrasonic Frequency: Standard frequency for reliable sonar distance measurement. Digital Interface: Uses Trig and Echo control pins just like HC'SR04 (easy to interface with Arduino, ESP32, Raspberry Pi, etc.). Low Power / Low Voltage: Works around 35VDC, suitable for most microcontrollers. Anti'Interference & Stability: Designed for stable readings even in harsh conditions (dust/water).

How It Works

• Microcontroller sends a Trigger pulse (usually 10s).

• Sensor emits ultrasonic sound waves via a transducer.

• Sound reflects off objects and returns as an echo.

• The

• Distance is calculated using the time and speed of sound.

Typical Specifications (General)

• Operating Voltage: ~5V DC (some can work ~3V to 5V).

• Distance Range: ~20cm to ~600cm or more (varies by model).

• Frequency: 40kHz ultrasonic waves.

• Accuracy: ~1cm typical.

• Operating Temperature: ~20C to +70C (varies).

• Interface: Digital Trig/Echo pins.

Common Uses & Applications

• Water level measurement (tanks, reservoirs).

• Outdoor distance sensing (gate detection, parking).

• Obstacle avoidance in robots (especially outdoor robots

• Security systems (presence detection, barriers).

Highlights

• JSN'SR04T V3.0 Waterproof Ultrasonic Sensor Module Highly popular and affordable waterproof distance sensor for Arduino/ESP32.

• JSN'SR04T Waterproof Ultrasonic Sensor Standard waterproof sonar sensor with many reviews.

• Robocraze Waterproof Ultrasonic Distance Transducer Reliable module for outdoor projects.

• A02YYUW Waterproof Ultrasonic Sensor Better sealed and higher'end option with robust performance.

• DFRobot ME007YS Waterproof Ultrasonic Sensor Industrial'grade waterproof sensor with UART output.

• Waterproof Ultrasonic Sensor Module without Probe, Waterproof Ultrasonic Obstacle Distaor Other compact and budget'friendly waterproof ultrasonic options.

Tips for Best Results

• Common Ground: Always connect sensor and microcontroller grounds.

• Avoid Dead Zone: Most waterproof ultrasonics have a blind range close to the sensor where it can't detect.

• Stable Mounting: Mount perpendicular to measurement surface for accurate readings.

• Power Supply: Use stable 5V power for reliable triggerin
