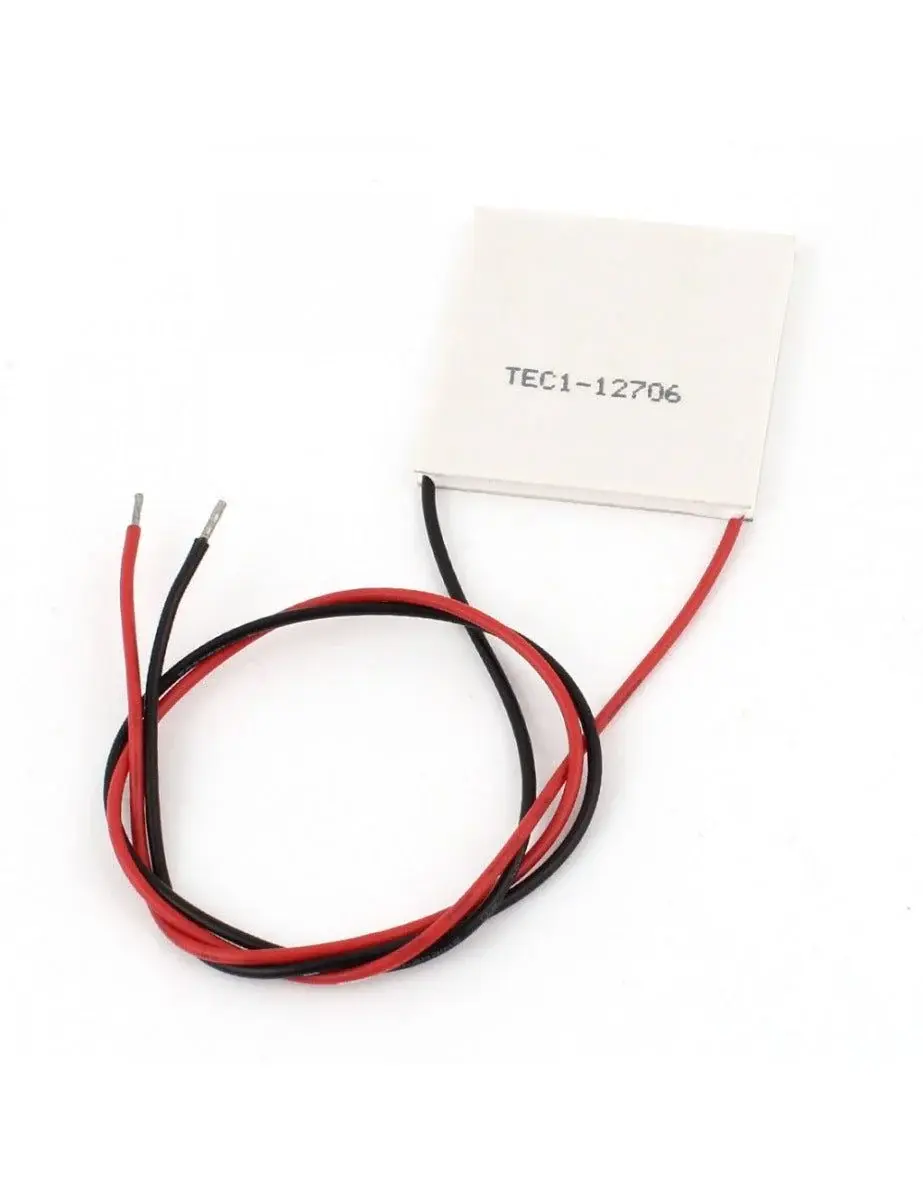

TEC1-12706 6A Thermoelectric Cooler Peltier Module
❄️ TEC1-12706 6A Thermoelectric Cooler Peltier Module
Solid-State Cooling • Compact • No Moving Parts
The TEC1-12706 Thermoelectric Peltier Module is a widely used thermoelectric cooling device that can create a temperature difference when powered with DC electricity. It works using the Peltier Effect, where heat is transferred from one side of the module to the other when current flows through it.
One side of the module becomes cold, while the opposite side becomes hot, allowing it to be used for cooling systems, temperature control devices, and DIY refrigeration projects.
📊 Infographic Overview
🔹 Basic Specifications
| Feature | Details |
|---|---|
| 🔌 Operating Voltage | 12V DC |
| ⚡ Maximum Current | 6A |
| ❄ Maximum Cooling Power | ~60W |
| 🌡 Maximum Temperature Difference | ~65°C |
| 📏 Module Size | 40 mm × 40 mm × 3.6 mm |
| 🔢 Thermocouple Pairs | 127 couples |
🧩 Main Components of the Module
| Component | Description |
|---|---|
| 🔷 Ceramic Plates | Provide electrical insulation and heat conduction |
| ⚡ Thermoelectric Elements | Semiconductor junctions that transfer heat |
| 🔗 Copper Conductors | Carry current through thermoelectric junctions |
| 🔌 Power Leads | Red (+) and Black (−) wires for power supply |
⚙️ Working Principle
The module operates using thermoelectric heat transfer.
Step-by-Step Operation
1️⃣ A DC power supply (usually 12V) is applied to the module.
2️⃣ Current flows through 127 thermoelectric junctions.
3️⃣ Heat is absorbed from one side of the module.
4️⃣ Heat is released on the opposite side.
5️⃣ A heat sink and fan are required to remove heat from the hot side.
📐 Module Structure
TEC1-12706 Peltier Module
┌────────────────────┐
│ Ceramic Plate │
│ (Cold Surface) │
└────────────────────┘
│
Thermoelectric Junctions
│
┌────────────────────┐
│ Ceramic Plate │
│ (Hot Surface) │
└────────────────────┘
(+) Red Wire
(-) Black Wire
📊 Performance Characteristics
| Parameter | Typical Value |
|---|---|
| Maximum Voltage | 15.4 V |
| Maximum Current | 6 A |
| Maximum Cooling Capacity | ~60 W |
| Maximum Temperature Difference | ~65°C |
🤖 Common Applications
🧊 Mini refrigerators
💻 CPU cooling systems
🌡 Temperature control devices
📦 Portable cooling boxes
🧪 Thermoelectric experiments
🚗 Car seat cooling systems
🔌 Power Requirements
For best performance the module typically requires:
12V DC power supply
5–6A current capability
Heat sink and cooling fan
Without proper cooling, the module may overheat and lose efficiency.
💡 Advantages
✅ No moving parts
✅ Compact and lightweight
✅ Silent operation
✅ Precise temperature control
✅ Environment-friendly (no refrigerant gases)
⚠️ Limitations
❌ Lower efficiency compared to compressor cooling
❌ Requires good heat dissipation
❌ High current consumption
❌ Cooling capacity is limited
🔧 Example DIY Project
🧊 Mini Thermoelectric Refrigerator
Components
TEC1-12706 Peltier Module
Heat sinks (hot & cold side)
Cooling fan
12V power supply
Insulated container
Working
✔ Peltier module creates temperature difference
✔ Cold side cools the container
✔ Fan removes heat from hot side
✔ Continuous cooling is maintained
