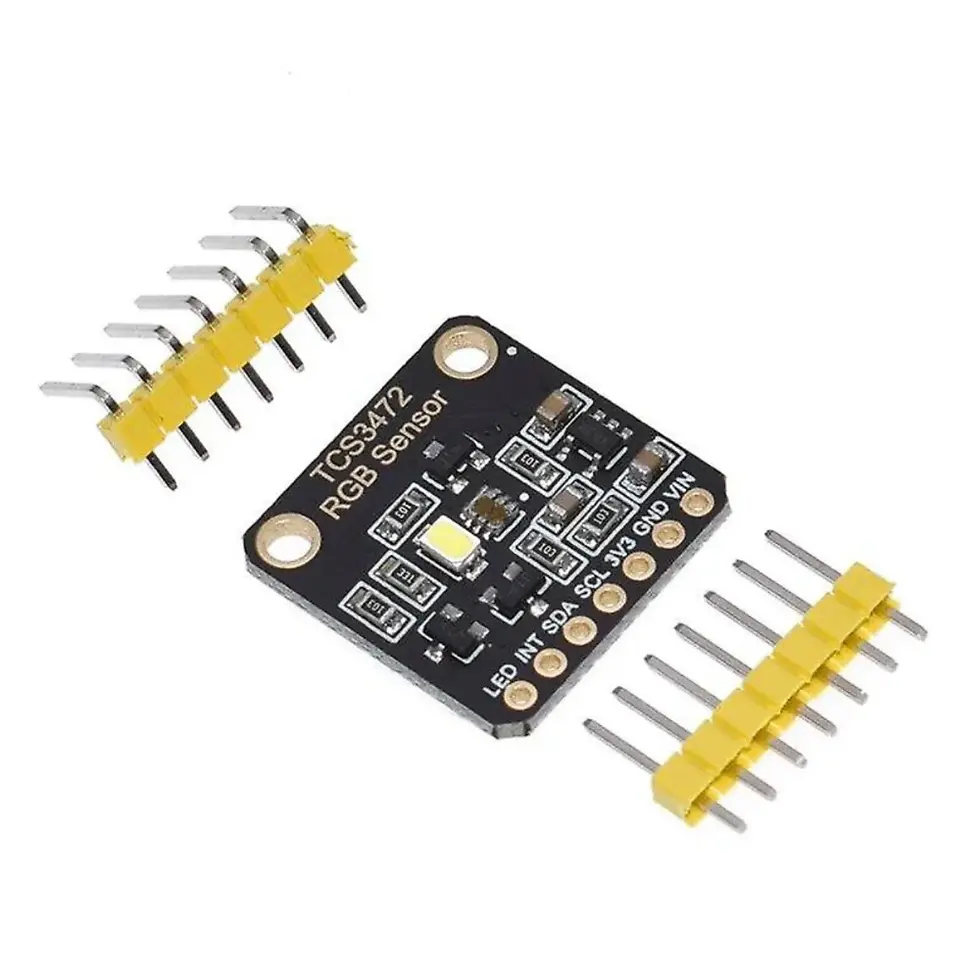

TCS34725 RGB Color Recognition Light Sensor Module

🎨 TCS34725 RGB Color Recognition Light Sensor Module — Technical Information
🔍 Overview
The module is based on the TCS34725 RGB color sensor IC, a digital color and ambient light sensor capable of detecting:
Red (R), Green (G), Blue (B) light intensity
Clear (ambient light) channel
👉 It provides accurate color measurement with built-in IR filtering, making it suitable for color detection and light sensing applications.
⚙️ Working Principle
🌈 Color Detection via Photodiodes
The sensor contains four photodiode arrays:
Red-filtered photodiode
Green-filtered photodiode
Blue-filtered photodiode
Clear (no filter) photodiode
🔄 Operation
Light falls on sensor surface
Each photodiode measures intensity of its color band
Signals are converted into electrical current
Internal ADC converts signals → digital values
👉 Produces separate digital values for R, G, B, and clear channels.
🌞 IR Filtering
Integrated infrared (IR) blocking filter
Improves:
Color accuracy
Stability under different lighting
📊 Measurement Characteristics
Color Channels
RGB + Clear (C) output
Resolution
16-bit ADC resolution
High sensitivity and precision
Light Sensitivity
Detects very low light levels
Wide dynamic range
Lux Measurement
Can be used to estimate:
Ambient light intensity (lux)
⚡ Electrical Characteristics
Supply voltage: 2.7V to 3.6V
Low power consumption
Supports sleep mode
🔗 Communication Interface
Interface: I²C (two-wire digital communication)
Fixed I²C address: 0x29
👉 Easy integration with microcontrollers.
🧠 Internal Features
✔ Integrated LED Driver Support
Can control external illumination LED
Improves color consistency
✔ Programmable Gain
Adjustable gain levels:
1×, 4×, 16×, 60×
Helps in:
Low light detection
Avoiding saturation
✔ Adjustable Integration Time
Controls:
Measurement duration
Trade-off:
Speed vs accuracy
✔ Interrupt Function
Can trigger interrupt based on:
Light threshold levels
🔄 Operating Behavior
✔ Color Measurement
Outputs raw RGB values
Used to calculate:
Color temperature
Color intensity
✔ Ambient Light Detection
Clear channel used for:
Lux calculation
✔ Adaptive Sensitivity
Gain and integration time can be tuned for environment
🌡️ Environmental Characteristics
Sensitive to:
Ambient lighting conditions
Distance from object
Best performance with:
Controlled illumination
⚠️ Limitations
Requires:
Proper calibration for accurate color recognition
Affected by:
External light interference
Cannot identify color directly:
Provides raw RGB values (software processing required)
🔌 Typical Pin Configuration
VCC → Power supply
GND → Ground
SDA → I²C data
SCL → I²C clock
INT → Interrupt output (optional)
🧩 Functional Role
The module acts as a:
Color detection sensor
RGB light measurement device
Ambient light sensor
🏁 Summary
The TCS34725 RGB Color Sensor Module is a high-precision digital color sensing device that:
Measures RGB and clear light intensity
Uses photodiode arrays with IR filtering
Provides 16-bit digital output via I²C
Supports gain and integration time control
Is suitable for color recognition and ambient light measurement systems
