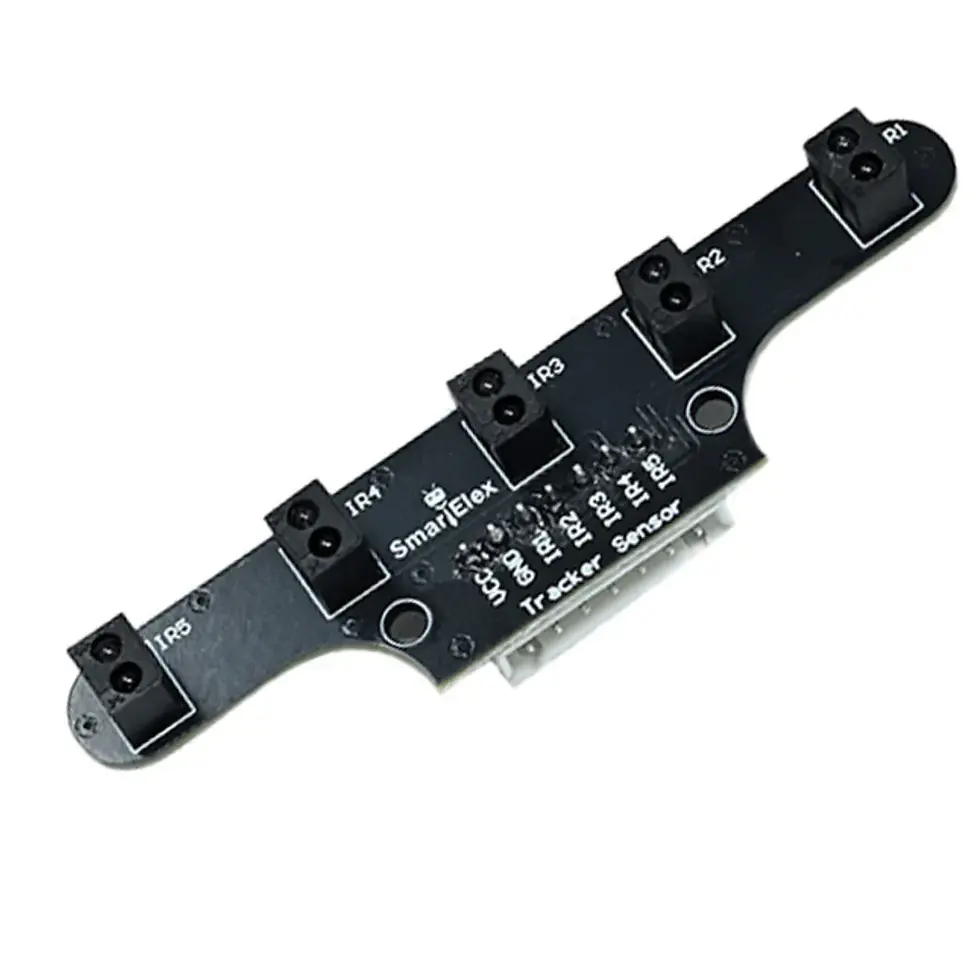

SmartElex Tracker Sensor

SmartElex Tracker Sensor

₹251.00Price

🔍 Overview

The SmartElex Tracker Sensor is an infrared (IR) reflectance sensing module designed for:

  • Line tracking / line following

  • Object surface detection

  • Contrast-based sensing (black vs white surfaces)

👉 It is commonly used in robotics as a single-channel line detection sensor.

⚙️ Working Principle

The sensor works on infrared reflectance detection:

1. 📡 IR Transmission

  • An IR LED emits infrared light toward the surface

2. 🔁 Reflection Behavior

  • Light (white) surface → reflects IR light

  • Dark (black) surface → absorbs IR light

3. 📥 Detection

  • A photodiode or phototransistor detects reflected IR light

  • Converts it into an electrical signal

4. ⚖️ Signal Processing

  • Signal is passed through:

    • Amplifier

    • Comparator (if digital output)

👉 Produces output indicating surface type.

📊 Output Characteristics

Digital Output

  • Binary signal (HIGH / LOW)

  • Indicates:

    • Line detected

    • No line detected

Analog Output (in some versions)

  • Voltage proportional to reflectance

  • Useful for:

    • Precise tracking

    • Control algorithms

⚡ Electrical Characteristics

  • Operating voltage: 3.3V to 5V

  • Low current consumption

  • Fast response time

🔧 Key Components

  • IR LED (emitter)

  • Photodiode / phototransistor (receiver)

  • Comparator IC (e.g., LM393)

  • Indicator LED

  • Resistors and signal conditioning circuit

🎯 Detection Performance

  • Detection distance: typically 2 mm to 10 mm

  • Best working distance: ~5 mm

  • High sensitivity to contrast differences

🧠 Internal Features

✔ Fast Response

  • Real-time detection for moving systems

✔ Adjustable Sensitivity (if available)

  • Some versions include potentiometer

  • Allows tuning for:

    • Different surfaces

    • Lighting conditions

✔ Noise Handling

  • Basic filtering reduces minor fluctuations

🔄 Operating Behavior

✔ Surface Detection Logic

  • White surface → strong reflection → output changes state

  • Black line → weak reflection → opposite output

👉 Output polarity depends on module configuration.

✔ Environmental Influence

  • Affected by:

    • Ambient light (especially sunlight)

    • Surface texture and reflectivity

    • Sensor height

⚠️ Limitations

  • Cannot detect:

    • Colors beyond reflectivity difference

  • Performance issues with:

    • Glossy or reflective surfaces

    • Uneven terrain

  • Requires calibration for reliable operation

🧩 Functional Role

The module acts as a:

  • Line detection sensor

  • Surface contrast detector

  • Feedback input for robotic navigation

🔌 Typical Pin Configuration

  • VCC → Power supply

  • GND → Ground

  • OUT → Digital output

(Some variants may include analog output)

🏁 Summary

The SmartElex Tracker Sensor is a simple IR-based reflectance sensor that:

  • Detects black/white surface contrast

  • Uses IR LED + photodetector technology

  • Provides fast digital output

  • Operates at low voltage (3.3V–5V)

  • Is optimized for line-following and tracking applications
