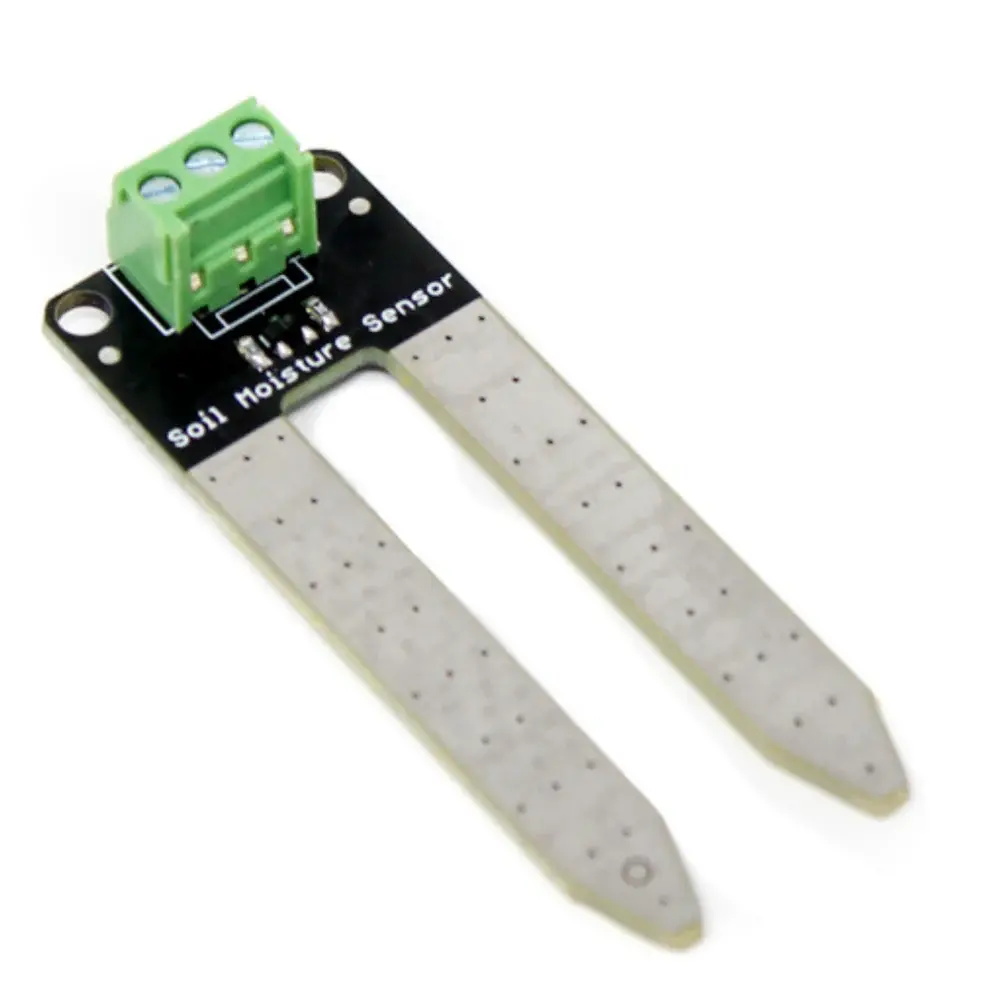

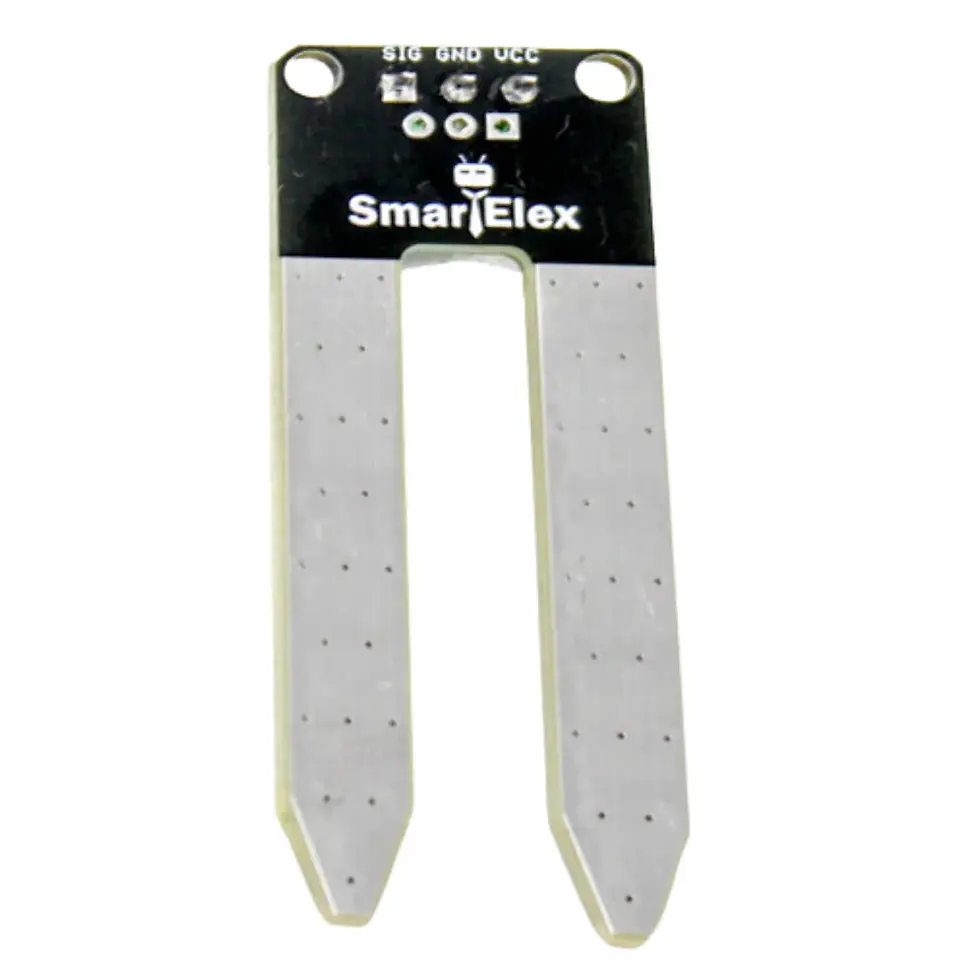

SmartElex Soil Moisture Sensor

🔍 What this sensor is
The SmartElex Soil Moisture Sensor is a simple analog sensor used to measure water content in soil.
👉 It tells you:
Soil is dry 🌵
Soil is wet 💧
➡️ Widely used in smart irrigation & plant monitoring systems
⚙️ Working Principle
Has two metal probes inserted into soil
Measures electrical conductivity
👉 Logic:
Wet soil → conducts more → low resistance → high output
Dry soil → conducts less → high resistance → low output
➡️ Output is analog voltage based on moisture level
⚙️ Key Specifications
Operating Voltage: 3.3V – 5V
Output Type: Analog
Compatible with: Arduino, ESP32, Raspberry Pi
Size: Compact (~61mm probe length)
🔌 Pinout
(For typical module with amplifier board)
VCC → 3.3V / 5V
GND → Ground
AO → Analog output (to Arduino A0)
DO (optional) → Digital output (threshold-based)
🧠 Output Explanation (VERY IMPORTANT)
📊 Analog Output (AO)
Gives moisture level (0–1023 in Arduino)
Used for:
Smart irrigation
Data logging
⚡ Digital Output (DO)
HIGH/LOW based on threshold
Used for:
Automatic watering ON/OFF
💡 Applications
🌱 Smart irrigation system
🪴 Plant monitoring
🚜 Agriculture automation
🏠 Smart gardening (IoT)
💧 Automatic water pump control
⚠️ Important Notes (VERY IMPORTANT)
👉 This is where most beginners make mistakes:
❌ Corrosion Problem
Metal probes rust over time
Accuracy decreases
👉 Real-world issue:
Cheap sensors may fail in 2–4 weeks (continuous use)
✅ Solution
Power sensor only when taking reading
Or upgrade to:
DFRobot Capacitive Soil Moisture Sensor · ₹536.67 (better, no corrosion)
⚠️ Other limitations
Not highly accurate (relative measurement only)
Affected by soil type (sand, clay, etc.)
Needs calibration
🆚 Resistive vs Capacitive Sensor
Feature
Resistive (SmartElex)
Capacitive
Cost
Very cheap
Higher
Accuracy
Moderate
Better
Durability
Low (corrosion)
High
Best for
Learning
Long-term projects
👍 When to use this
Use SmartElex sensor if you want:
Beginner projects
Low-cost irrigation system
Quick prototyping
👎 When NOT to use
Avoid if:
Long-term outdoor use
Professional agriculture systems
🧠 Final Understanding
👉 This sensor = “water level detector for soil”
👉 Cheap & simple, but not long-lasting
