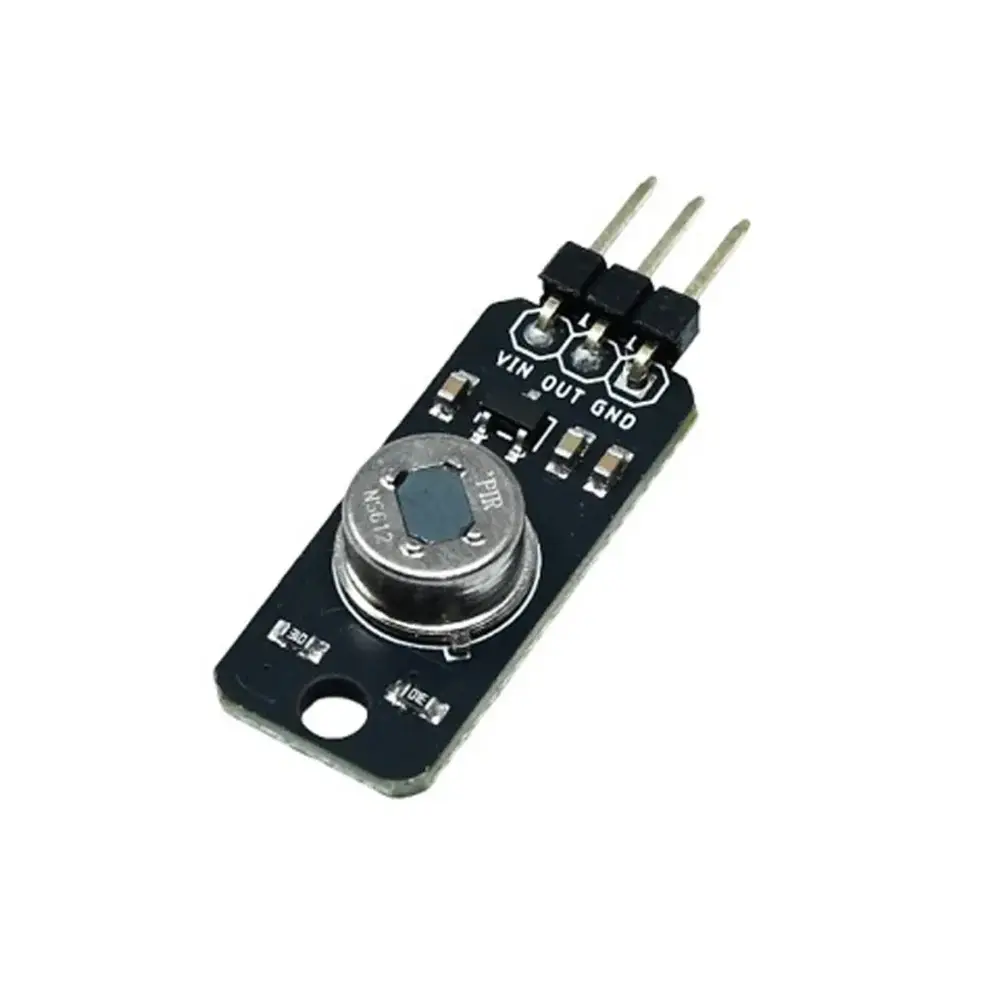

SmartElex BX604 PIR Motion Sensor Module

SmartElex BX604 PIR Motion Sensor Module Technical Information

Overview

The SmartElex BX604 PIR Motion Sensor Module is a compact, ultra-low power passive infrared (PIR) motion detector designed to detect human movement based on infrared radiation changes.

• Detects:

  • Motion of warm bodies (humans/animals)



• Output:

  • Digital HIGH/LOW signal



• Designed for:

  • Battery-powered and low-power motion sensing systems



It is optimized for energy-efficient and compact embedded applications.

Working Principle

Passive Infrared (PIR) Detection

1. IR Radiation Monitoring

• Human body emits infrared radiation levels, not constant temperature

2. Pyroelectric Sensing Element

• Uses a pyroelectric infrared sensor

• Generates electrical signal when IR radiation changes

3. Differential Detection

• Detects movement across sensing zones

• Motion changing IR pattern trigger signal

4. Digital Processing

• Internal circuit:

  • Amplifies signal

  • Converts to digital output



Outputs HIGH when motion is detected.

Detection Characteristics

• Detection range: up to 12 meters

• Detection angle: ~120 (horizontal)

Detection Behavior

• Sensitive to:

  • Human movement

    Requires motion (no detection of static objects)

  Electrical Characteristics

  • Operating voltage: 2.2V to 3.7V

  • Power consumption:

    • < 11 A (ultra-low standby current)





  Ideal for battery-powered devices.

  Output Interface

  Digital Output

  • HIGH Motion detected

  • LOW No motion



  Output Behavior

  • Motion triggers a timed HIGH signal

  • Returns to LOW after delay



  Internal Features

  Integrated Digital Processing

  • Converts PIR signal stable digital output

  • Reduces external circuitry requirement



  Ultra-Low Power Design

  • Designed for:

  Fresnel Lens Support

  • Uses external Fresnel lens (SB-F-02):

    • Improves detection range

    • Expands sensing coverage



  Compact Sensor Window

  • Small 4 4 mm sensing area

  Operating Behavior

  Motion Detection

  • Detects changes in infrared radiation

  • Output goes HIGH when motion occurs



  Stabilization Time

  • Requires short time after power-up to stabilize

  Repeat Detection

  • Can retrigger if motion continues

  Environmental Characteristics

  • Works best at:

    • Indoor temperature conditions



  • Affected by:

    • Ambient temperature

    • Airflow

    • IR interfp

      • Cannot detect:

        • Stationary objects



      • Performance reduced when:

        • Ambient temperature human body temperature



      • Sensitive to:

        • Rapid temperature changes



      • Requires lens for full performance



      Typical Pin Configuration

      • VCC 2.23.7V supply

      • GND Ground

      • OUT Digital output



      Functional Role

      The module acts as a:

      • Motion detection sensor

      • Presence trigger device

      • Low-power automation sensor



      Summary

      The SmartElex BX604 PIR Sensor is a compact, ultra-low power motion detection module that:

      • Detects motion up to 12 meters with 120 coverage

      • Provides digital HIGH/LOW output

      • Consumes extremely low power (<11 A)

      • Is ideal for battery-powered IoT and automation systems

        </
