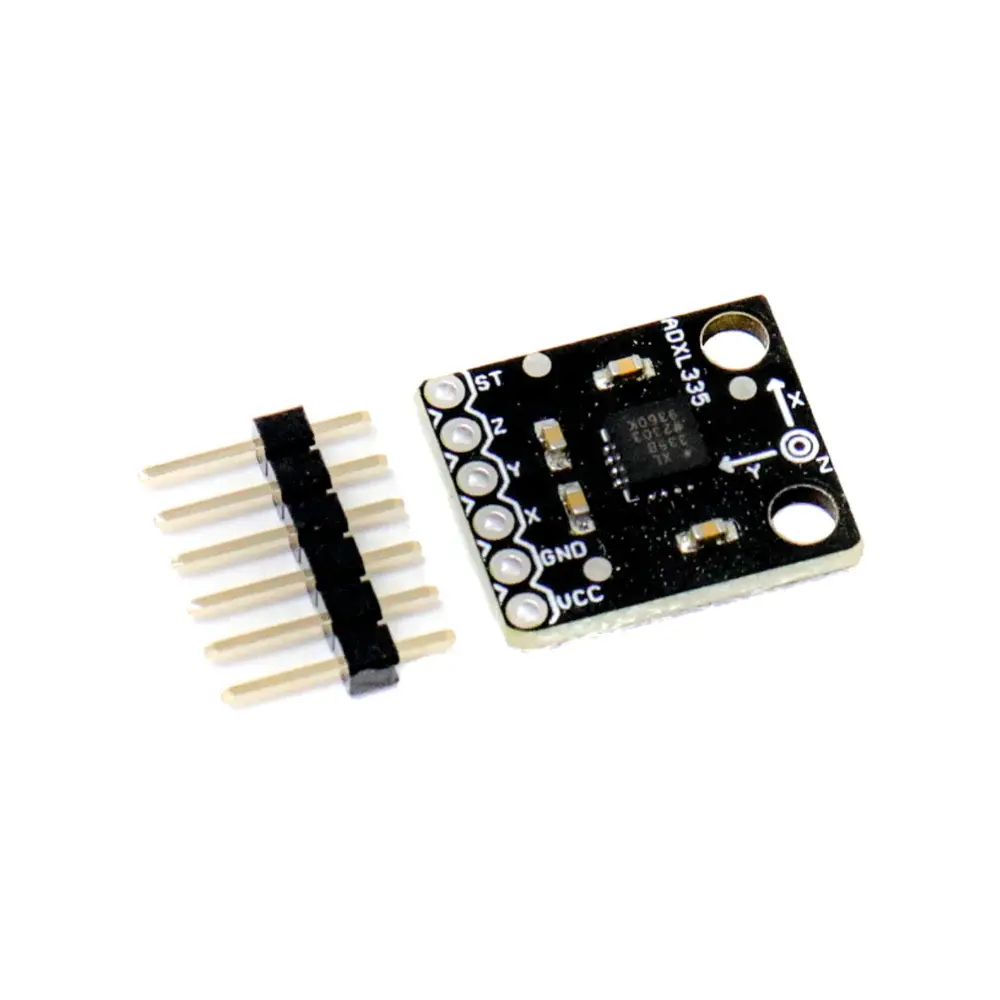

SmartElex ADXL335 Triple Axis Accelerometer Breakout

SmartElex ADXL335 Triple Axis Accelerometer Breakout

₹523.00Price
🏃 SmartElex ADXL335 Triple Axis Accelerometer Breakout — Technical Information
🔍 Overview
The SmartElex ADXL335 is a low-power, analog-output, 3-axis accelerometer breakout module capable of measuring acceleration along X, Y, and Z axes.
  • Measures:
    • Static acceleration (gravity)
    • Dynamic acceleration (motion, vibration)
  • Output:
    • Analog voltage proportional to acceleration
  • Range:
    • ±3g (selectable on some variants)
👉 Suitable for motion detection, tilt sensing, and basic inertial navigation.
⚙️ Working Principle
⚡ MEMS Capacitive Sensing
  • Uses Micro-Electro-Mechanical Systems (MEMS) capacitive sensors
  • Acceleration changes distance between tiny internal plates → capacitance change
  • Internal circuitry converts capacitance → analog voltage
🔄 Axis Measurement
  • X, Y, Z axes measured independently
  • Analog voltage outputs are proportional to g-force
Vout=Vzero−g+(Acceleration×Sensitivity)V_{out} = V_{zero-g} + (Acceleration × Sensitivity)Vout​=Vzero−g​+(Acceleration×Sensitivity)
  • Vzero−g≈VCC/2V_{zero-g} \approx V_{CC}/2Vzero−g​≈VCC​/2
  • Sensitivity: ~300 mV/g (typical)
📊 Measurement Characteristics
  • Acceleration range: ±3g
  • Output type: Analog voltage (continuous)
  • Sensitivity: ~300 mV/g
  • Voltage supply: 1.8V–3.6V typical
  • Frequency response: DC to 550 Hz
⚡ Electrical Characteristics
  • Supply voltage: 1.8V–3.6V
  • Low power: 350 µA typical at 3V
  • Temperature range: −40°C to +85°C
🔗 Output Interface
  • Analog outputs:
    • X, Y, Z axes → connected to ADC of microcontroller
  • GND → Ground
  • VCC → Supply voltage
🧠 Internal Features
✔ High Resolution
  • MEMS accelerometer provides high-resolution analog output
✔ Low Noise
  • Low output noise for stable readings
✔ Compact Package
  • Small breakout suitable for embedded systems
✔ Low Power Operation
  • Ideal for battery-powered devices
🔄 Operating Behavior
✔ Motion Detection
  • Detects:
    • Tilt angles
    • Movement
    • Shocks/vibrations
✔ Analog Processing
  • Output is linear with acceleration, enabling software to calculate angles or velocity
✔ Orientation Sensing
  • Can detect orientation relative to gravity for tilt detection
🌡️ Environmental Characteristics
  • Temperature: −40°C to +85°C
  • Vibration and shock tolerant
  • Suitable for portable and industrial applications
⚠️ Limitations
  • Analog output:
    • Requires ADC for microcontroller reading
  • Accuracy affected by:
    • Noise
    • Temperature drift
  • Limited range:
    • ±3g only (not for high-g applications)
🔌 Typical Pin Configuration
  • VCC → Power supply (1.8–3.6V)
  • GND → Ground
  • XOUT → X-axis analog output
  • YOUT → Y-axis analog output
  • ZOUT → Z-axis analog output
🧩 Functional Role
The module acts as a:
  • 3-axis accelerometer
  • Tilt and motion sensor
  • Low-power inertial sensing device
🏁 Summary
The SmartElex ADXL335 Triple Axis Accelerometer is a compact, low-power MEMS sensor that:
  • Measures acceleration along X, Y, Z axes
  • Provides analog voltage output proportional to g-force
  • Supports tilt, motion, and vibration sensing
  • Operates in wide temperature range and low voltage
  • Is suitable for embedded systems, wearables, and robotics
