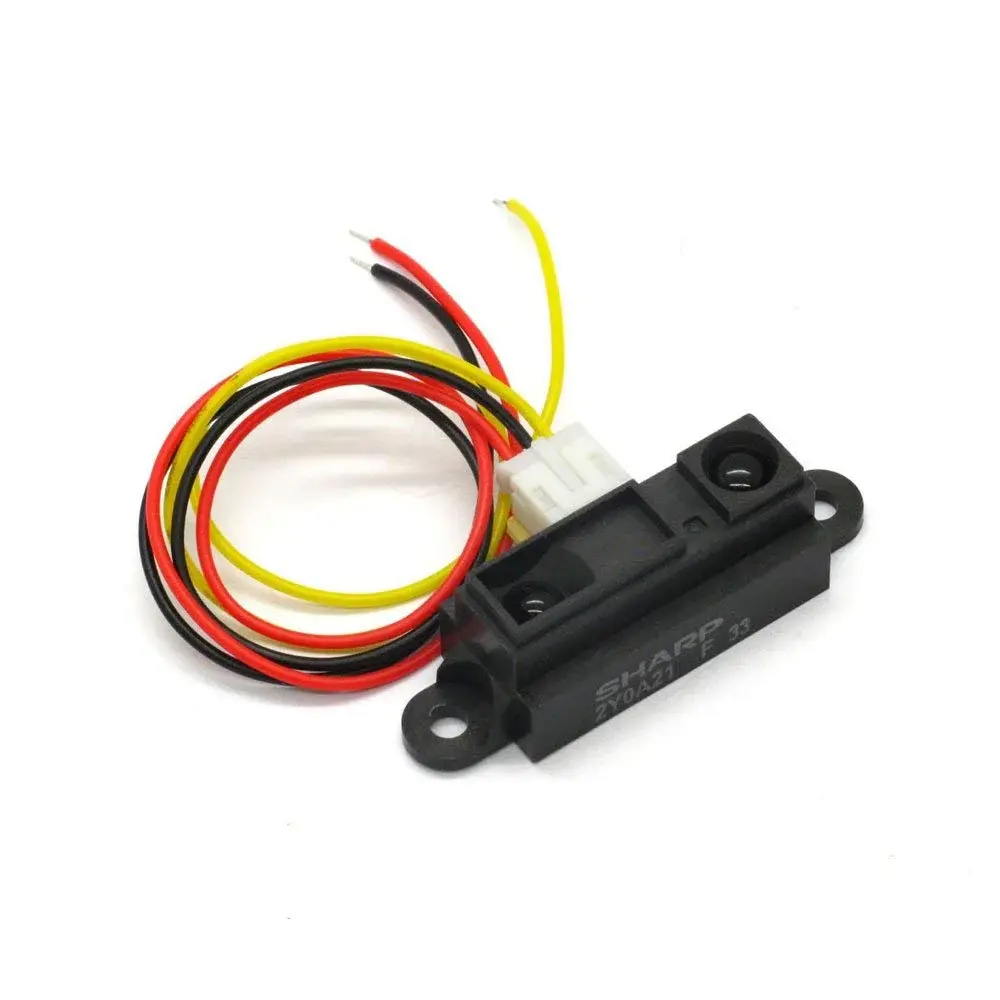

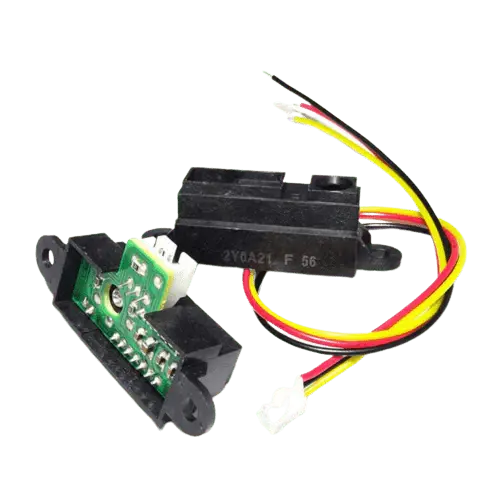

Sharp GP2Y0D810Z0F Digital Distance Sensor

=========================================================
SHARP GP2Y0D810Z0F DIGITAL DISTANCE SENSOR
=========================================================

MODEL: GP2Y0D810Z0F
TYPE: Digital infrared proximity sensor
OUTPUT: Digital (logic HIGH/LOW)
DETECTION RANGE: ~10–80 cm
SUPPLY VOLTAGE: 2.7–6.0 V DC (typical 3.3–5 V)
INTERFACE: Open‑collector / pull‑up output
SENSING METHOD: Infrared LED + photodiode

---------------------------------------------------------
🔹 SENSOR PURPOSE:
Detects presence or absence of an object within a specified
distance range. Outputs a **digital signal** indicating
whether an object is detected.

---------------------------------------------------------
📏 DISTANCE CHARACTERISTICS:
• **Detects objects ~10–80 cm** away (approximate)
• Output switches **LOW (0)** when object detected
• Output remains **HIGH (1)** when no object present
*(Actual range depends on object color, size, reflectivity)*

---------------------------------------------------------
📌 ELECTRICAL SPECIFICATIONS:
Supply Voltage: 2.7–6.0 V DC
Operating Current: ~6–10 mA
Output Type: Open‑collector transistor
Logic Output:
 • LOW = object detected
 • HIGH = no object (through pull‑up resistor)

---------------------------------------------------------
🔌 PINOUT (Typical):
• **VCC** – Power supply (3.3–5 V)
• **GND** – Ground
• **OUT** – Digital output (requires pull‑up)

---------------------------------------------------------
💡 OPERATION PRINCIPLE:
1. Infrared LED emits light
2. Light reflects off object
3. Photodiode detects reflected IR
4. Sensor output transistor switches based
 on reflected signal strength

---------------------------------------------------------
⚙️ CONNECTION GUIDELINES:
• Use a **pull‑up resistor** (10 kΩ) on output if
 microcontroller doesn’t provide one
• Works well with **3.3 V and 5 V logic**
• Avoid direct bright sunlight on sensor face
• Mount stable and aligned with object path

---------------------------------------------------------
🧠 NOTES ON PERFORMANCE:
• Detection varies with object color/texture
– Dark/absorbent surfaces reduce detection range
• NOT a precise distance measurement sensor
– Only **presence/absence within range**
• Ideal for robust object detection, not fine measurement

---------------------------------------------------------
📌 COMMON USE CASES:
• Object presence detection
• Conveyor belt item sensing
• Robot obstacle sensing
• Line/edge detection triggers
• Automated doors / safety systems
• Simple digital proximity applications

---------------------------------------------------------
🏁 INSTALLATION TIPS:
• Place sensor perpendicular to object motion
• Minimize ambient IR interference
• Use stable mounting bracket
• Keep sensor face clean for best response
