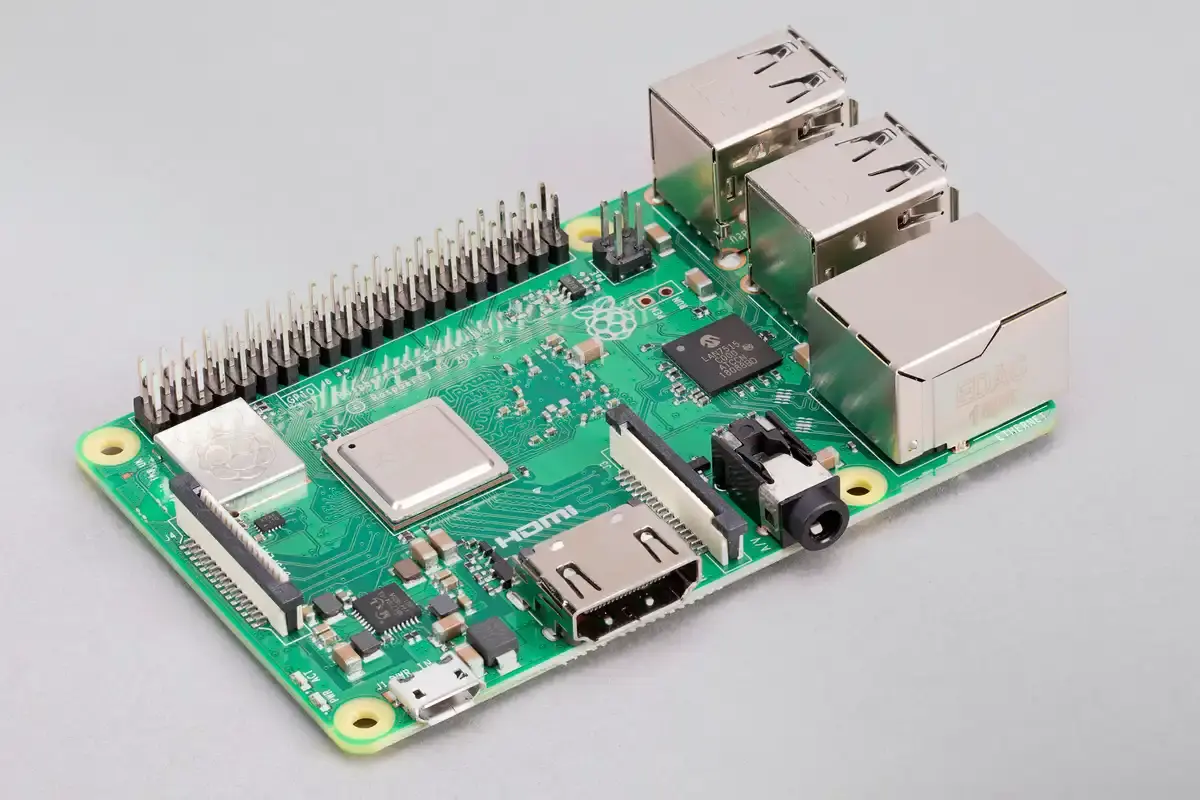

Raspberry Pi 3B+
🧩 Raspberry Pi 3 Model B+
High Performance • Gigabit Networking • Wireless Connectivity
🔹 Overview
The Raspberry Pi 3 Model B+ is an upgraded version of the Raspberry Pi 3 Model B, delivering improved processor speed, enhanced wireless connectivity, and faster Ethernet performance.
Released in March 2018 by the Raspberry Pi Foundation, it became one of the most widely used Raspberry Pi boards for education, IoT, robotics, media centers, and industrial prototyping.
It offers the perfect balance between performance, connectivity, and affordability.
⚙️ Core Specifications (Infographic Style)
| 🧩 Feature | 📌 Details |
|---|---|
| 🧠 Processor | Broadcom BCM2837B0 – 1.4GHz 64-bit Quad-Core ARM Cortex-A53 |
| 💾 RAM | 1GB LPDDR2 SDRAM |
| 🌐 Wi-Fi | Dual-Band 802.11 b/g/n/ac (2.4GHz & 5GHz) |
| 📡 Bluetooth | Bluetooth 4.2 + BLE |
| 🌐 Ethernet | Gigabit Ethernet (over USB 2.0 – ~300Mbps max) |
| 🔌 USB | 4 × USB 2.0 |
| 🎮 GPIO | 40-Pin Header |
| 📺 Video | Full-Size HDMI (up to 1080p) |
| 📷 Camera | CSI Camera Port |
| 📱 Display | DSI Display Port |
| ⚡ Power | 5V / 2.5A via Micro USB |
| 📏 Size | 85.6 mm × 56 mm |
🚀 Major Improvements Over 3 Model B
✅ Faster 1.4GHz CPU (previously 1.2GHz)
✅ Dual-band Wi-Fi support
✅ Improved Ethernet speed (Gigabit over USB 2.0)
✅ Better thermal management
✅ PoE support via PoE HAT
🔌 Connectivity & Expansion
🎮 40-Pin GPIO Header
Fully HAT compatible
Supports I2C, SPI, UART, PWM
Ideal for robotics, sensors, displays
🌐 Networking Power
Gigabit Ethernet (limited by USB 2.0 bus)
Dual-band Wi-Fi improves stability
Bluetooth 4.2 for IoT devices
Supports SSH, VNC, remote servers
📺 Multimedia Features
HDMI output up to 1080p
Hardware-accelerated video decoding
Works well with media center systems
Supports dual display (HDMI + DSI combination)
Compatible with:
Kodi
LibreELEC
RetroPie
🛠️ Common Applications
🔹 Robotics control systems
🔹 IoT gateways
🔹 Smart home hubs
🔹 Media centers
🔹 Classroom Linux computers
🔹 Industrial automation
🔹 Network monitoring devices
🔹 Edge computing prototypes
💻 Supported Operating Systems
Raspberry Pi OS
Ubuntu (ARM versions)
Windows 10 IoT Core
LibreELEC
RetroPie
⚡ Power & Thermal Info
Recommended 5V 2.5A power supply
Improved heat management compared to 3B
Can use heatsinks or cooling case for heavy tasks
🎯 Why Choose Raspberry Pi 3B+?
✔ Strong quad-core performance
✔ Reliable wired + wireless networking
✔ Large community support
✔ Perfect for both education & semi-industrial use
✔ Cost-effective computing platform
📦 What You Need to Get Started
🔸 microSD Card (16GB recommended)
🔸 5V 2.5A Micro USB power supply
🔸 HDMI cable
🔸 Keyboard & Mouse
🔸 Optional: Heatsink or case
🏫 Ideal For
👨🎓 Schools & STEM labs
🤖 Robotics & IoT startups
🏭 Embedded product prototyping
🏠 Smart home integrators
🛠️ DIY electronics enthusiasts
