Rain Drop Sensor Module
🌧️ Rain Drop Sensor Module
Rain Detection • Weather Monitoring • Smart Automation
The Rain Drop Sensor Module is an electronic sensor used to detect rain or water droplets. It is commonly used in weather monitoring systems, smart irrigation systems, and automatic rain-sensing applications. The module detects water by measuring changes in electrical resistance when water droplets fall on the sensor plate.
📊 Infographic Overview
🔹 Basic Specifications
| Feature | Details |
|---|---|
| 🔌 Operating Voltage | 3.3V – 5V |
| ⚡ Operating Current | ~15 mA |
| 📡 Output Type | Analog (A0) & Digital (D0) |
| 🔧 Sensitivity Adjustment | Yes (Potentiometer) |
| 🧩 Interface | Sensor plate + control module |
| 🌧 Detection Type | Rain / Water presence |
🧩 Module Components

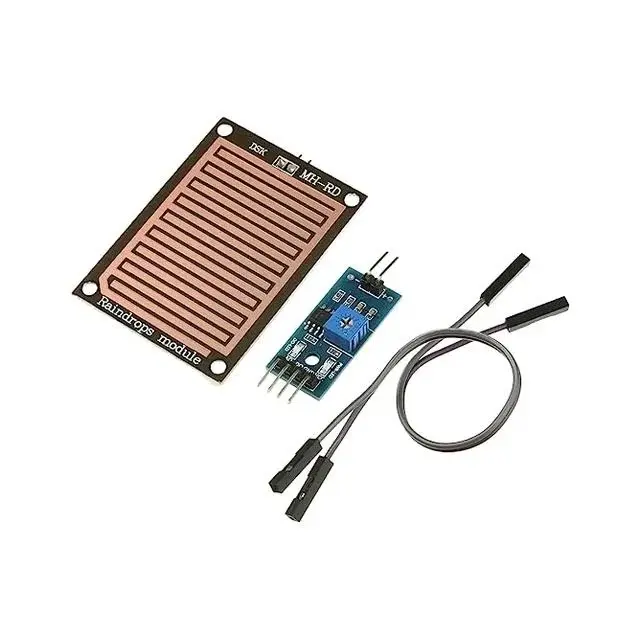

The Rain Drop Sensor Module usually has two parts:
1️⃣ Rain Detection Plate
A conductive plate with parallel copper traces that detect water droplets.
2️⃣ Control Board
Contains electronic components that process the signal.
Key parts include:
Comparator IC (usually LM393)
Sensitivity adjustment potentiometer
Power and signal pins
Indicator LEDs
🔌 Pin Configuration
| Pin | Function |
|---|---|
| VCC | Power supply (3.3V – 5V) |
| GND | Ground |
| A0 | Analog output (rain intensity level) |
| D0 | Digital output (rain detected or not) |
⚙️ Working Principle
The rain sensor works using the conductivity of water.
Step-by-Step Operation
1️⃣ Water droplets fall on the sensor plate.
2️⃣ The water connects the conductive traces, reducing resistance.
3️⃣ The resistance change produces a voltage change.
4️⃣ The control module processes the signal.
5️⃣ The sensor outputs:
Analog signal → indicates rain intensity
Digital signal → indicates rain detection threshold
📐 Sensor Layout
Rain Sensor Plate
┌────────────────────┐
│ ////// ////// ////│
│ ////// ////// ////│
│ ////// ////// ////│
└────────────────────┘
│
│
Control Module
┌─────────────────────┐
│ Potentiometer │
│ Comparator (LM393) │
│ LEDs Indicator │
└─────────────────────┘
┌─────┬─────┬─────┬─────┐
│ VCC │ GND │ A0 │ D0 │
└─────┴─────┴─────┴─────┘
🤖 Common Applications
🌧 Weather monitoring stations
🚗 Automatic car wiper systems
🌱 Smart irrigation systems
🏠 Smart home rain alerts
🛰 IoT environmental monitoring
🚜 Agricultural automation systems
🔌 Compatible Microcontrollers
The rain sensor works easily with popular development boards such as:
Arduino Uno
ESP32
Arduino Nano
Raspberry Pi
💡 Advantages
✅ Simple and low-cost sensor
✅ Easy to interface with microcontrollers
✅ Provides both analog and digital output
✅ Adjustable sensitivity
✅ Ideal for DIY weather and automation projects
⚠️ Limitations
❌ Sensor plate can corrode over time due to water exposure
❌ Requires maintenance and cleaning
❌ Not ideal for long-term outdoor exposure without protection
🔧 Example Project Idea
🌧 Smart Rain Detection System
Components
Rain Drop Sensor Module
ESP32 or Arduino Uno
Buzzer / LED
LCD Display
WiFi IoT dashboard
Features
✔ Detect rain automatically
✔ Send smartphone notification
✔ Activate automatic window closing
✔ Control irrigation system
