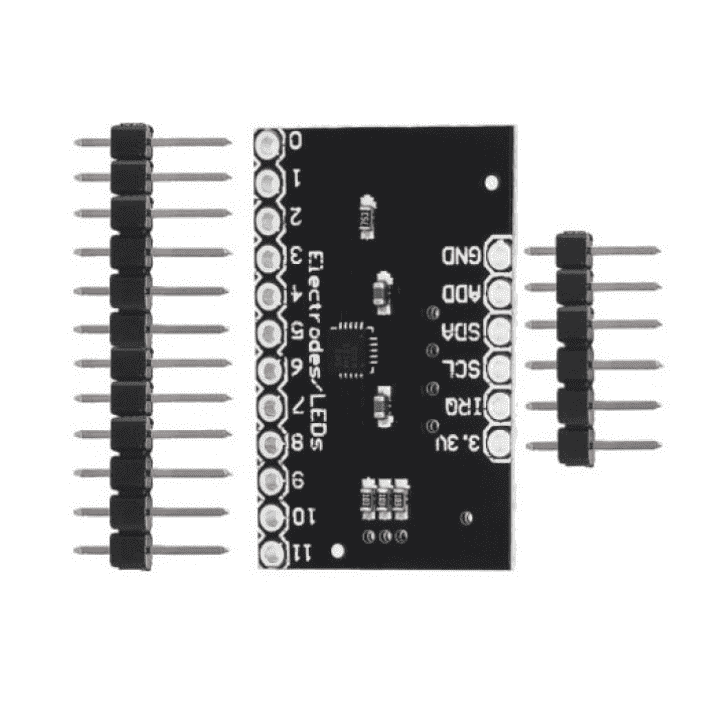

MPR121 - 12 Channel Capacitive Touch Sensor Controller Module - I2C Interface

📌 MPR121 – 12‑Channel Capacitive Touch Sensor Controller Module
🔍 What It Is
The MPR121 is a dedicated capacitive touch/proximity sensor controller that communicates over the I²C interface. It simplifies adding touch sensing to microcontroller projects like Arduino, ESP32, Raspberry Pi, etc.
🧠 Key Features
+---------------------------------------------------+
| MPR121 Capacitive Sensor |
+---------------------------------------------------+
| ✔ 12 Capacitive Touch Channels |
| ✔ I²C Interface (2‑wire) |
| ✔ Adjustable Sensitivity |
| ✔ Built‑in Filtering & Baseline Tracking |
| ✔ Low Power Consumption |
| ✔ Interrupt Output for Real‑Time Detection |
+---------------------------------------------------+
🔌 Functional Block Overview
┌──────────────────────────────┐
│ MPR121 Controller │
│ │
│ +------------------------+ │
│ | I²C Interface |<──┐ SDA & SCL (to host MCU)
│ +------------------------+ │
│ │
│ +------------------------+ │
│ | Control Registers | │
│ +------------------------+ │
│ │
│ +------------------------+ │
│ | Baseline Tracker | │
│ +------------------------+ │
│ │
│ +------------------------+ │
│ | Filter Engine | │
│ +------------------------+ │
│ │
│ +------------------------+ │
│ | 12 Touch Inputs |─>│ Electrodes (Capsense)
│ +------------------------+ │
│ │
│ +------------------------+ │
│ | INT Output (Interrupt) |───┘
│ +------------------------+ │
└──────────────────────────────┘
🧱 Pin/Module Layout (Text)
┌───────────────┐
| MPR121 |
| |
HZ:IRQ │ 1 10│ RESET
GND │ 2 9 │ VCC (3.3V)
SDA │ 3 8 │ SCL
GND │ 4 7 │ OUT (INT)
EPA │ 5 6 │ EPB
└───────────────┘
Pin Descriptions
VCC – Power Supply (typically 3.3V)
GND – Ground
SDA – I²C Data
SCL – I²C Clock
OUT (INT) – Interrupt when touch changes
IRQ/HZ – Optional IRQ signal (module‑dependent)
RESET – Reset input (active low)
EPA/EPB – Extra pins (optional breakout connections)
🧠 How It Works (Concept)
✨ Capacitive Touch Sensing
Each electrode forms a capacitor with your finger.
When touch occurs → capacitance increases → MPR121 detects change.
Finger 👆
↓
Capacitive Field Change
↓
MPR121 Measures
↓
Signal Processed in Filter
↓
Touch Event Sent via I²C
↓
Microcontroller Reads Touch
📡 I²C Communication
I²C Address
Default: 0x5A (7‑bit)
Can sometimes be changed via solder jumpers.
Typical Communication
Host MCU MPR121
SDA <──────► SDA
SCL <──────► SCL
GND <──────► GND
VCC <──────► VCC
📊 Register Map (High‑Level)
+---------------------------+
| MPR121 Registers |
+---------------------------+
| Electrode Touch Status |
| Baseline Values |
| Filter Configuration |
| Thresholds for Touch/Release
| Debounce Settings |
| Auto‑Configuration |
| Electrode Enable Control |
+---------------------------+
⚙️ Configuration Parameters
✔ Touch & Release Thresholds
Each channel needs a threshold to decide when a touch begins and ends.
✔ Baseline Tracking
Automatically adjusts to slow changes in environment.
✔ Filtering
Reduces noise from power lines, movement, or humidity.
✔ Debounce Control
Prevents false triggers.
📈 Typical Workflow
1. Power ON module (3.3V)
2. Initialize I²C on MCU
3. Configure MPR121 (thresholds + filters)
4. Enable electrodes
5. Read touch status periodically OR
use Interrupt (OUT) to know touch change
6. Process UI / Buttons in MCU app
⚡ Power & Signal Notes
Operating Voltage: 1.8V to 3.6V (3.3V typical)
Logic Level: Do NOT use 5V signals directly
Low Current: Good for battery‑powered devices
🧰 Common Uses
✔ Touch buttons & sliders
✔ Capacitive keypads
✔ Proximity sensing
✔ Wearables & interactive interfaces
✔ Robotics human‑interaction panels
🛠️ Advantages
Feature
Benefit
12 channels
Enable many buttons/inputs
I²C interface
Easy integration with microcontrollers
Built‑in baseline tracking
Adapts to environmental shifts
Low power
Battery‑friendly
Interrupt‑based
Efficient touch detection
⚠️ Limitations
Not 5V tolerant → must use proper voltage levels
Sensitivity affected by large shields or grounded plates
Requires tuning of thresholds for best performance
🧩 Summary
MPR121 Module
│
├── 12 capacitive touch inputs
├── Communicates via I²C
├── User‑configurable thresholds
├── Built‑in filtering + baseline tracking
├── Interrupt signal for touch events
└── Ideal for touch UI in embedded systems
