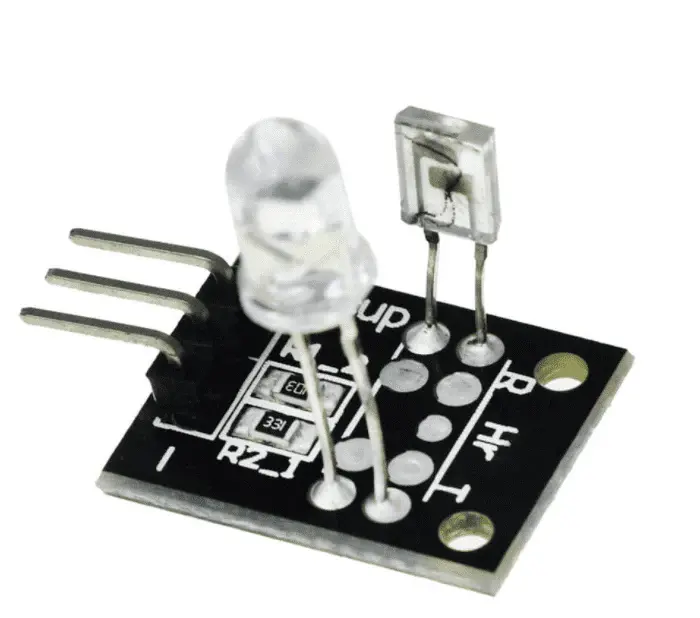

KY-039 Finger Heartbeat Detection Sensor

₹31.00

❤️ KY-039 Finger Heartbeat Detection Sensor — Detailed Explanation

🧠 What is it?

The KY-039 Finger Heartbeat Sensor is a simple module used to detect a person’s pulse (heartbeat) by placing a finger over it.

👉 It works using light-based sensing to detect blood flow changes in the finger.

⚙️ How It Works

The sensor uses a principle similar to photoplethysmography:

An IR LED shines light into your finger
Blood absorbs part of this light
As your heart beats:
- Blood volume changes
- Light absorption changes
A phototransistor detects these changes
Output signal fluctuates with each heartbeat

👉 These fluctuations correspond to your pulse

🔌 Pin Configuration

Pin	Function
VCC	3.3V – 5V
GND	Ground
Signal (S)	Analog output

🔄 Working Flow

IR Light → Finger → Blood Flow Changes
↓
Light Absorption Varies
↓
Phototransistor Detects Changes
↓
Analog Signal Output
↓
Microcontroller Processes Pulse

📊 Key Specifications

Operating voltage: 3.3V – 5V
Output: Analog signal
Detection method: Optical (IR)
Low-cost and simple design

🧠 Important Characteristics

1. Analog Output

Produces a weak and noisy signal
Requires filtering and processing

2. Sensitive to Placement

Finger must be placed firmly but gently
Too much pressure → blocks blood flow
Too loose → unstable readings

3. Ambient Light Sensitivity

External light can affect readings

🚀 Applications

❤️ Basic heart rate monitoring
🤖 Arduino health projects
🧪 Educational experiments
📊 Pulse detection systems

✅ Advantages

Very low cost
Simple to use
Good for learning projects
No complex interface

⚠️ Limitations (Important)

❌ Not medically accurate
❌ Very noisy signal
❌ Requires signal filtering in code
❌ Inconsistent readings

👉 It is mainly for educational/demo purposes, not real health monitoring

🔌 Arduino Connection

VCC → 5V
GND → GND
Signal → A0

💡 Example Use

Basic pulse counter:

Place finger on sensor
Read analog signal
Detect peaks (heartbeats)
Calculate BPM (beats per minute)

🔍 Practical Tips

Keep finger steady
Avoid bright light exposure
Use software filtering (moving average)
Sample data continuously for accuracy

🔁 Better Alternatives

Sensor	Accuracy
KY-039	Low
Pulse Sensor Amped	Medium
MAX30100/MAX30102	High (SpO2 + HR)

🧪 Real-Life Example

In a DIY project:

Sensor detects pulse signal
Arduino processes peaks
Displays BPM on LCD
