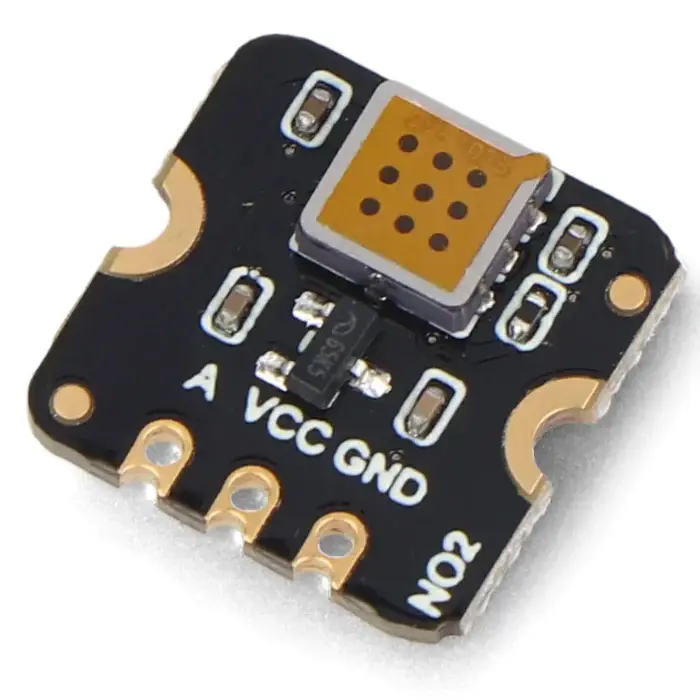

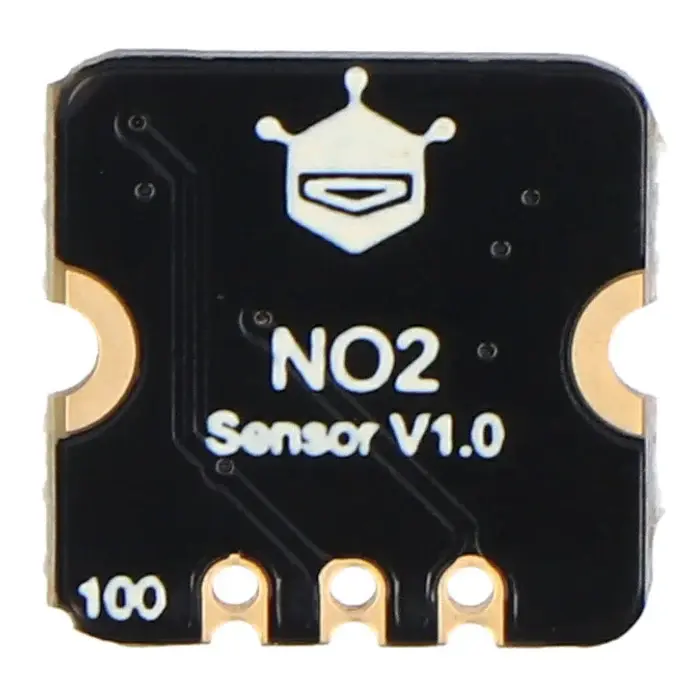

Fermion: MEMS Nitrogen Dioxide NO2 Gas Detection Sensor

🧠 What Is This Sensor?
A MEMS-based gas sensor designed to detect Nitrogen Dioxide (NO₂) concentration in air.
Uses Micro-Electro-Mechanical Systems (MEMS) technology for compact size, low power, and high sensitivity.
Commonly used in air quality monitoring and environmental sensing systems.
🔍 Key Features
Target Gas: Nitrogen Dioxide (NO₂)
High Sensitivity: Detects very low concentrations (ppm level)
Low Power Consumption: Typically <20 mA
Compact Size: Around 13 × 13 × 2.5 mm
Fast Response & Recovery: Suitable for real-time monitoring
Analog Output: Provides voltage proportional to gas concentration
📊 Technical Specifications
Parameter
Value
Detection Range
0.1 – 10 ppm NO₂
Operating Voltage
3.3 V – 5 V DC
Operating Current
< 20 mA
Output Type
Analog voltage
Operating Temp
–10 °C to +50 °C
Humidity Range
15–90% RH (non-condensing)
Lifespan
≥ 5 years (in air)
⚙️ How It Works
The MEMS sensing element reacts chemically with NO₂ gas.
This interaction changes the sensor’s internal resistance.
The onboard circuit converts this change into an analog voltage signal.
The output voltage is read by a microcontroller ADC and converted into gas concentration (ppm).
📌 Applications
Air quality monitoring systems
Smart city pollution monitoring
Industrial safety (toxic gas detection)
Automotive emission monitoring
IoT environmental sensing projects
⚠️ Important Notes
Calibration Required: For accurate ppm readings, calibration with known NO₂ concentrations is needed.
Cross Sensitivity: May respond slightly to other gases (like NO, H₂ depending on variant).
Environmental Sensitivity: Temperature and humidity can affect readings.
Not for Critical Safety Systems: Not recommended for life-critical applications.
Warm-Up Time: Preheating (sometimes up to hours for best accuracy) improves stability.
🛠 Summary
Type: MEMS NO₂ gas sensor
Range: 0.1–10 ppm
Output: Analog voltage
Power: Low (<20 mA)
Use Case: Air pollution and gas monitoring systems
