Eye Mechanism 3D Printed Parts
👁️ Eye Mechanism – 3D Printed Parts
Precision Components for Building Realistic Robotic Eyes

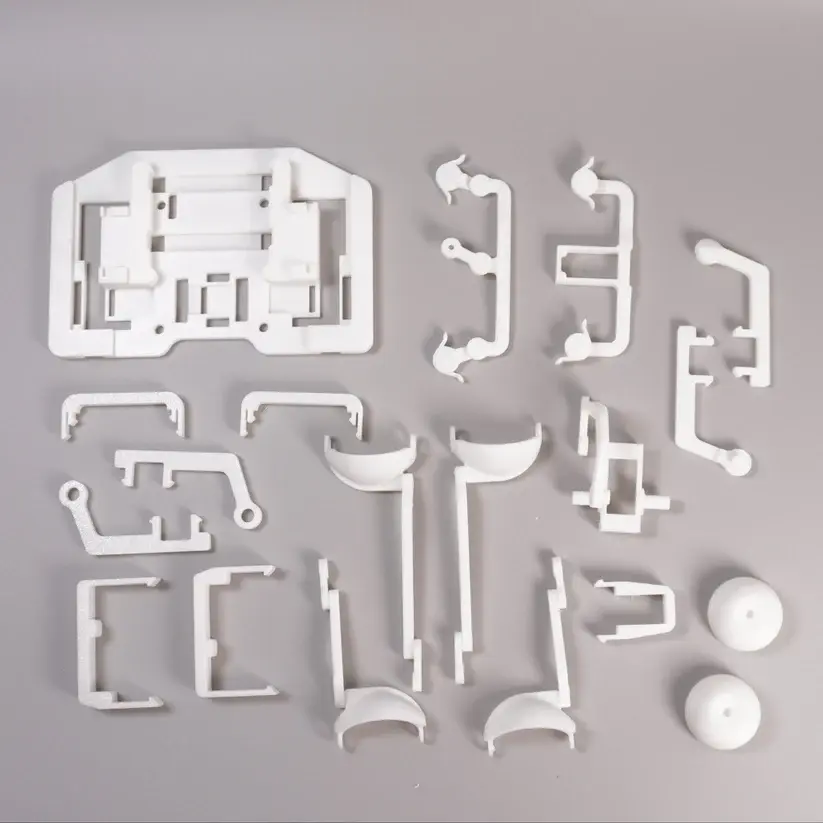

Eye mechanism 3D printed parts are specially designed mechanical components used to build robotic eye systems. These parts allow robotic eyes to move, rotate, blink, and track objects, helping robots achieve more natural and human-like expressions. They are commonly used in humanoid robots, animatronics, AI robots, and educational robotics projects.
📊 Infographic – Key Features
🖨️ Custom 3D Printed Design
Manufactured using high-precision 3D printing
Usually printed with PLA, ABS, or PETG materials
Lightweight yet durable structure
Easy to modify or customize
⚙️ Smooth Eye Movement Mechanism
The mechanism allows multiple movements:
🔄 Horizontal rotation (left/right)
🔼 Vertical rotation (up/down)
👁 Blinking eyelids
🎯 Object tracking capability
This is achieved using servo-driven linkages and gimbal mechanisms.
🧩 Modular Mechanical Structure
Typical 3D printed eye mechanism includes:
| Part | Function |
|---|---|
| Eyeball Holder | Holds the artificial eyeball |
| Servo Mount | Holds micro servo motors |
| Eye Frame | Main structure for alignment |
| Linkage Arms | Transfer servo motion to eye |
| Eyelid Mechanism | Controls blinking motion |
| Mounting Bracket | Fixes mechanism to robot head |
🔧 Compatible Hardware
These mechanisms commonly work with:
SG90 Micro Servo Motor
MG90S Metal Gear Servo
Arduino Uno Rev3
Raspberry Pi 4 Model B
ESP32 Development Board
📐 Advantages of 3D Printed Eye Mechanisms
✔ Lightweight and compact
✔ Cost-effective manufacturing
✔ Easy to assemble and repair
✔ Highly customizable design
✔ Perfect for robotics prototypes
🛠️ Applications
🤖 Humanoid Robots
Used to create lifelike eye movement for social robots.
🎬 Animatronics & Film Props
Used in robot characters, movie props, and theme park robots.
🧪 AI Vision Research
Combined with cameras and AI for robot vision experiments.
🎓 STEM & Robotics Education
Helps students learn robotics mechanics and motion systems.
⚠️ Design Considerations
Proper servo alignment is required
Parts should be printed with high infill strength
Smooth joints are needed for natural movement
Calibration is important for accurate eye tracking
✅ Simple Explanation:
Eye mechanism 3D printed parts act as the skeleton and joints of robotic eyes, enabling them to move realistically and interact naturally with humans.
