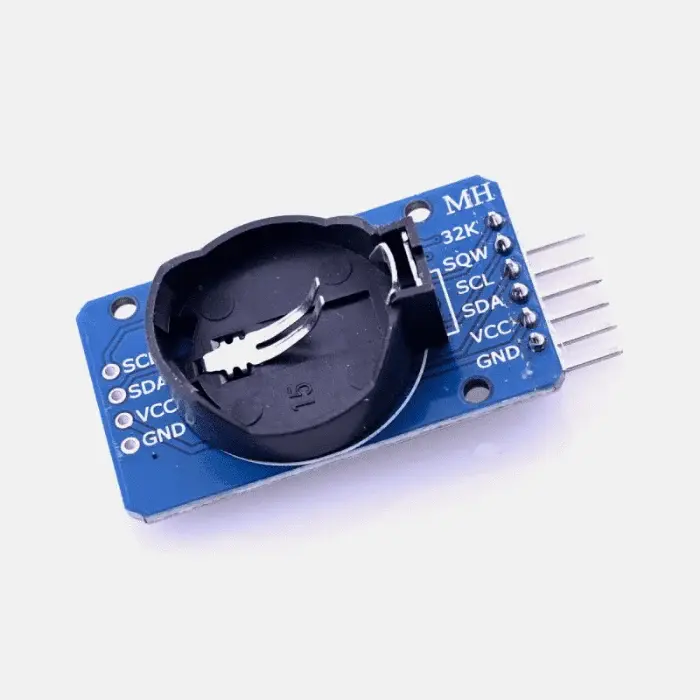

DS3231 Real Time Clock Memory Module with out Battery
⏰ DS3231 Real Time Clock (RTC) Memory Module – Without Battery
High-Accuracy Timekeeping • I²C Interface • Built-in EEPROM
The DS3231 Real Time Clock Module is a highly accurate real-time clock (RTC) module used to keep track of date and time in electronic systems. It includes a temperature-compensated crystal oscillator, which provides much better accuracy than common RTC chips.
This module also includes EEPROM memory (usually the AT24C32 EEPROM) for storing small amounts of data such as settings, logs, or timestamps.
The module typically supports a backup battery, but this version is supplied without the battery.📊 Infographic Overview
🔹 Basic Specifications
| Feature | Details |
|---|---|
| ⏰ RTC Chip | DS3231 |
| 🔌 Operating Voltage | 3.3V – 5.5V |
| 📡 Communication | I²C Interface |
| 💾 EEPROM Memory | 32KB (AT24C32) |
| 🌡 Built-in Temperature Sensor | Yes |
| 📅 Time Format | Seconds, Minutes, Hours, Day, Date, Month, Year |
| 🔋 Backup Battery | Supported (not included) |
🧩 Main Components
| Component | Description |
|---|---|
| ⏰ DS3231 RTC Chip | Maintains accurate date and time |
| 💾 AT24C32 EEPROM | Stores user data or logs |
| 🔋 Coin Cell Holder | For CR2032 backup battery |
| 📡 I²C Interface Pins | Communication with microcontroller |
| 🔧 Crystal Oscillator | Temperature-compensated timekeeping |
🔌 Pin Configuration
| Pin | Function |
|---|---|
| VCC | Power supply (3.3V – 5V) |
| GND | Ground |
| SDA | I²C data line |
| SCL | I²C clock line |
| SQW | Square wave output |
| 32K | 32.768 kHz output |
⚙️ Working Principle
The RTC module continuously keeps track of time and calendar data.
Step-by-Step Operation
1️⃣ Microcontroller sends commands through I²C communication.
2️⃣ The RTC chip updates seconds, minutes, hours, date, month, and year.
3️⃣ The temperature-compensated oscillator maintains high accuracy.
4️⃣ When power is lost, the backup battery keeps the clock running.
5️⃣ Time data can be read anytime by the microcontroller.
📐 Module Layout
DS3231 RTC Module
┌─────────────────────┐
│ DS3231 RTC │
│ Temp Compensated │
│ Oscillator │
├─────────────────────┤
│ AT24C32 EEPROM │
└─────────────────────┘
VCC GND SDA SCL
🤖 Common Applications
⏰ Digital clocks
📊 Data logging systems
🏠 Home automation timers
📅 Calendar and scheduling devices
📡 IoT devices requiring accurate time
🔌 Compatible Microcontrollers
The module works easily with:
Arduino Uno
Arduino Nano
ESP32
Raspberry Pi
📊 DS3231 vs DS1307 Comparison
| Feature | DS3231 | DS1307 |
|---|---|---|
| Accuracy | Very High | Moderate |
| Temperature Compensation | Yes | No |
| Operating Voltage | 3.3–5V | 5V |
| Time Drift | Very Low | Higher |
💡 Advantages
✅ Very high time accuracy
✅ Built-in temperature compensation
✅ Low power consumption
✅ Includes EEPROM memory
✅ Simple I²C communication
⚠️ Note (Without Battery Version)
Since the module does not include a battery:
Time will reset when power is removed
To maintain time during power loss, add a CR2032 Coin Cell Battery
🔧 Example DIY Project
⏰ Arduino Digital Clock
Components
DS3231 Real Time Clock Module
Arduino Uno
LCD or OLED display
Working
✔ RTC module keeps accurate time
✔ Arduino reads time via I²C
✔ Display shows current date and time
