DS18B20 Digital Temperature Sensor Module

🌡️ DS18B20 Digital Temperature Sensor Module
🧠 What is it?

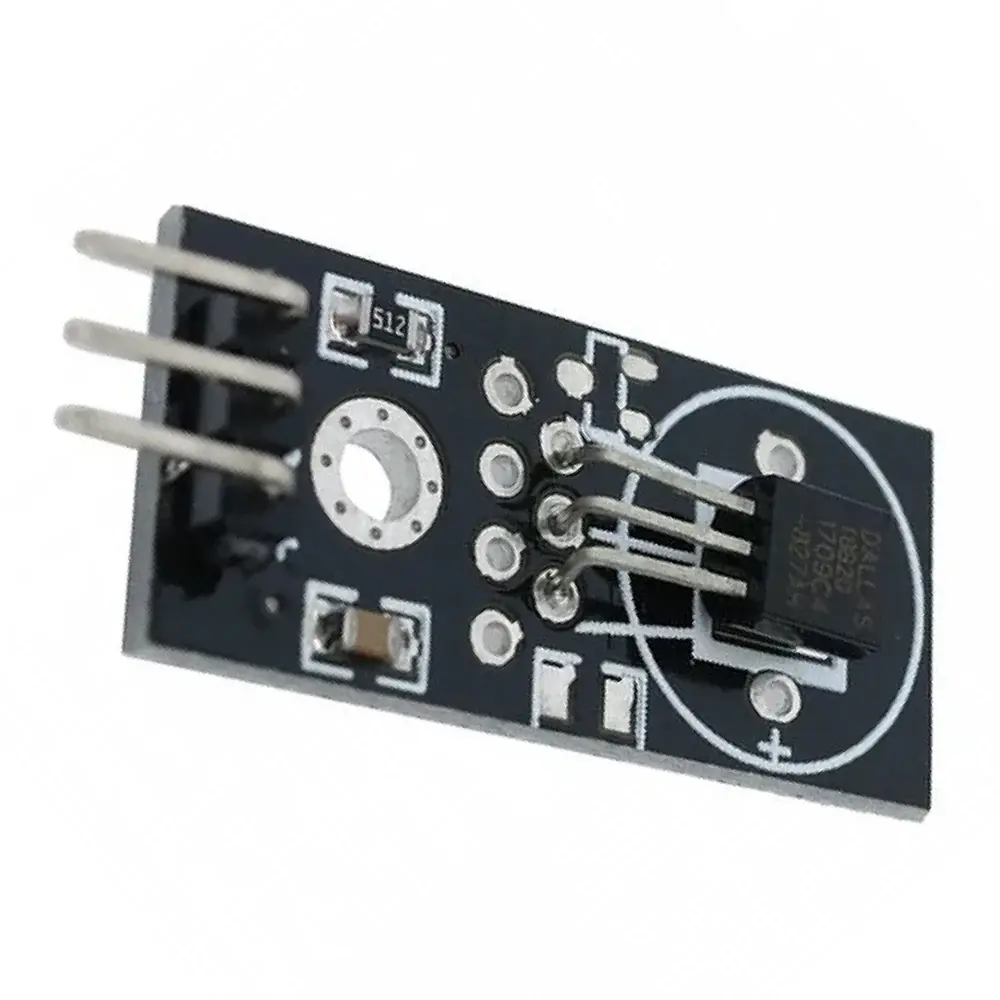

The DS18B20 Temperature Sensor module is a ready-to-use board built around the DS18B20 sensor.
👉 Unlike the bare sensor or waterproof probe, this module version already includes supporting components, making it easier to connect directly to microcontrollers like Arduino, ESP8266, or Raspberry Pi.
⚙️ How It Works
The DS18B20 sensor measures temperature internally
Converts it into digital data
Sends the data using the 1-Wire protocol
👉 Only one data pin is required for communication
🔌 Pin Configuration (Module)
Most DS18B20 modules have 3 pins:
Pin
Function
VCC
Power supply (3.3V – 5V)
GND
Ground
DATA / OUT
Digital signal output
🔧 What’s Inside the Module?
The module typically includes:
DS18B20 sensor IC
4.7kΩ pull-up resistor (built-in)
Small PCB for easy connections
👉 This means you don’t need to add an external resistor, unlike the bare sensor.
📊 Key Specifications
Temperature range: -55°C to +125°C
Accuracy: ±0.5°C (−10°C to +85°C)
Resolution: 9–12 bit (configurable)
Interface: 1-wire digital
Unique 64-bit ID per sensor
🧠 Important Features
1. Plug-and-Play Convenience
No external components required
Direct wiring to microcontroller
2. Multi-Sensor Capability
Multiple DS18B20 modules can share one data line
3. Noise Resistant
Digital communication reduces signal errors
🔄 Working Process
Power is supplied to the module
Sensor measures temperature
Converts temperature to digital format
Sends data via DATA pin
Microcontroller reads and displays it
🚀 Applications
🌡️ Room temperature monitoring
🌱 Smart agriculture systems
🏠 Home automation
🖥️ CPU/environment monitoring
🧪 Lab experiments
✅ Advantages
Easy to use (no extra resistor needed)
Accurate and stable readings
Supports long-distance communication
Multiple sensors on a single pin
⚠️ Limitations
Slower response than some analog sensors
Slightly higher cost than basic sensors
Limited to temperature only (no humidity)
🔌 Module vs Waterproof Probe
Feature
Module
Waterproof Probe
Environment
Indoor
Harsh/liquid
Protection
Low
High (sealed)
Setup
Easy
Easy
Use case
Projects
Industrial/liquid
💡 Example Use with Arduino
Basic idea:
Connect DATA → digital pin (e.g., D2)
Use libraries:
OneWire
DallasTemperature
Read and print temperature
🧪 Real-Life Example
In a home automation setup:
Module measures room temperature
Arduino reads data
If temperature > threshold → turn ON fan
🔍 Practical Tips
Even though resistor is built-in, verify your module version
Keep wires short for stable readings
Use proper grounding to avoid noise
