DFRobot SLAMTEC RPLiDAR A1M8 360 Degree Laser Range Finder 12m Radius

What this sensor is

The SmartElex / SLAMTEC RPLiDAR A1M8 is a 360 laser-based LiDAR scanner used for:

• Mapping surroundings

• Robot navigation

• Environment scanning

It's basically a rotating laser scanner that creates a 2D map of your environment

Core Concept (VERY IMPORTANT)

Unlike normal sensors:

• Ultrasonic 1 distance

• IR 1 point

• ToF (VL53L5CX) grid

RPLiDAR full 360 scan continuously

It generates a 2D point cloud map

Key Specifications

• Type: 2D LiDAR (laser triangulation)

• Range:Scanning Angle: 360

• Scan Rate: ~5.5 Hz (up to 10 Hz configurable)

• Sampling Rate: ~8000 samples/sec

• Angular Resolution: 1

• Distance Resolution: <1% error

How it works

• Rotates continuously

• Emits laser beam

• Measures reflection time/angle

• Builds distance points

Output = circular map of surroundings

Example Output (concept)

YOU

Each dot = distance point Combined environment map

Key Features

• Full 360 real-time scanning

  ocalization)

• Plug-and-play via USB

• Long lifespan (no slip ring OPTMAG tech)

Applications (VERY POWERFUL)

• Autonomous robots

• SLAM (Simultaneous Localization & Mapping)

• Self-driving systems (basic level)

• Robot vacuum navigation

• Indoor mapping

• Security scanning

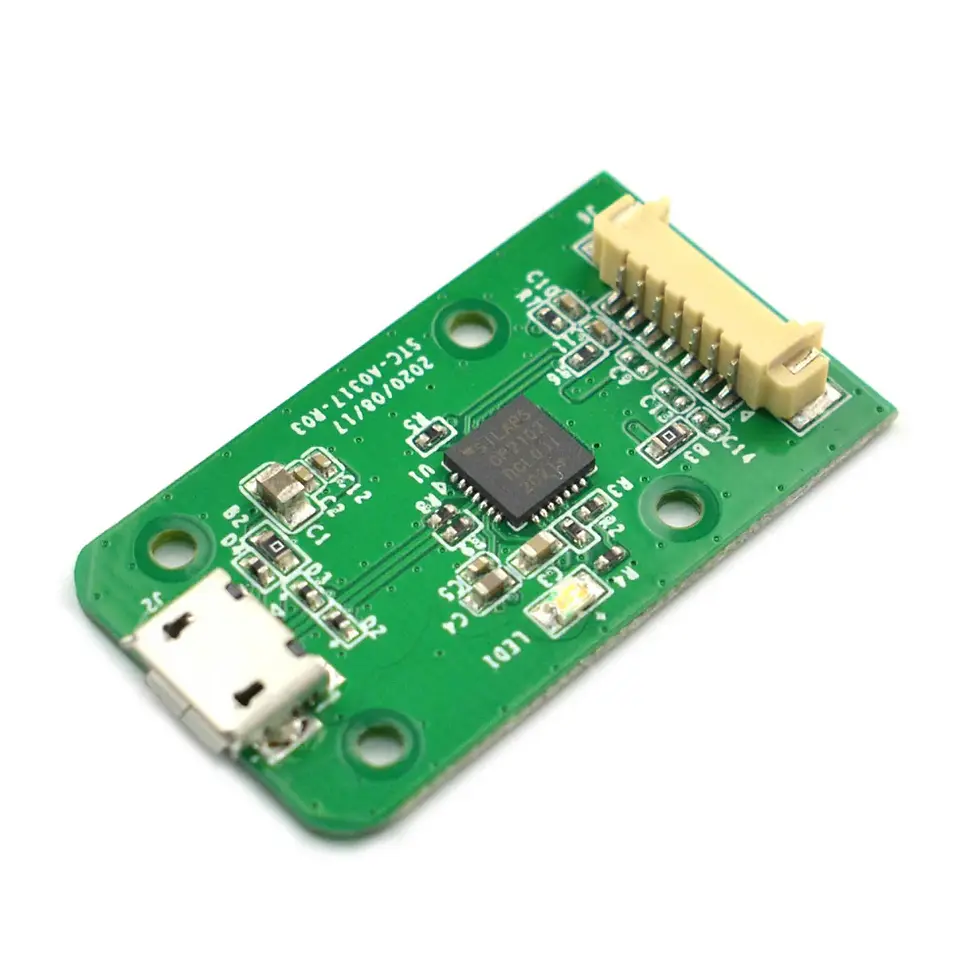

Interface & Connection

• USB (plug & play with PC)

• UART (for embedded systems)

• Works with:

  • Arduino (limited)

  • ESP32

  • Raspberry Pi (recommended)

  • ROS (Robot Operating System)



Important Notes (VERY IMPORTANT)

1. Not beginner-frisensors

2. Arduino limitation

• Data rate too high for UNO Use:

• ESP32

• Raspberry Pi

Reddit insight:

data rate is too high for Arduino UNO

3. Indoor optimized

• Works best indoors

• Sunlight can affect readings

4. Range confusion (important)

• Some sellers say 12m Actually:

• ~6m radius

• ~12m diameter
