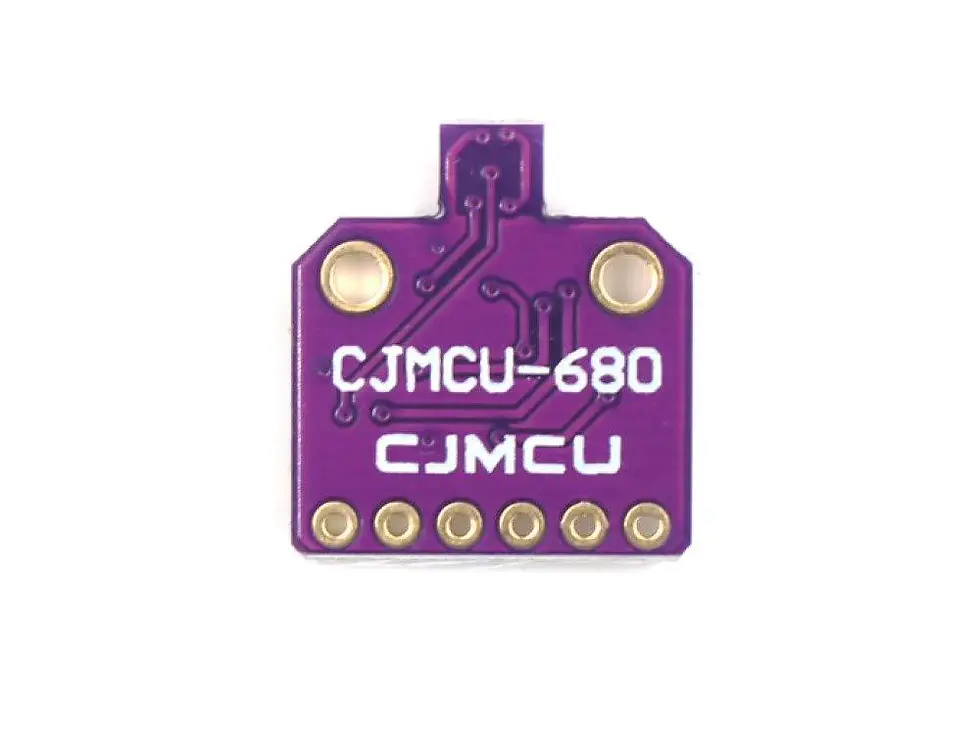

BME680 Digital Humidity Temperature Pressure High Altitude Sensor Module
π Overview
The BME680 is a powerful 4-in-1 environmental sensor developed by Bosch Sensortec.
π It can measure:
π‘οΈ Temperature
π§ Humidity
π¬οΈ Atmospheric Pressure
π«οΈ Air Quality (VOC gases)
β Also used as a high-altitude sensor due to accurate pressure measurement.
π§ Working Principle
The module integrates multiple sensing technologies:
π‘οΈ Temperature β Semiconductor sensor
π§ Humidity β Capacitive sensing
π¬οΈ Pressure β MEMS barometric sensor
π«οΈ Gas β Heated metal-oxide sensor (detects VOCs)
π It estimates Indoor Air Quality (IAQ) using gas resistance changes
π Infographic Summary
ββββββββββββββββββββββββββββββββ
β π BME680 SENSOR MODULE β
ββββββββββββββββββββββββββββββββ€
β π‘ Temp: -40Β°C to 85Β°C β
β π§ Humidity: 0β100% RH β
β π¬ Pressure: 300β1100 hPa β
β π« Gas: VOC detection β
β β‘ Voltage: 3.3Vβ5V β
β π Interface: I2C / SPI β
ββββββββββββββββββββββββββββββββ

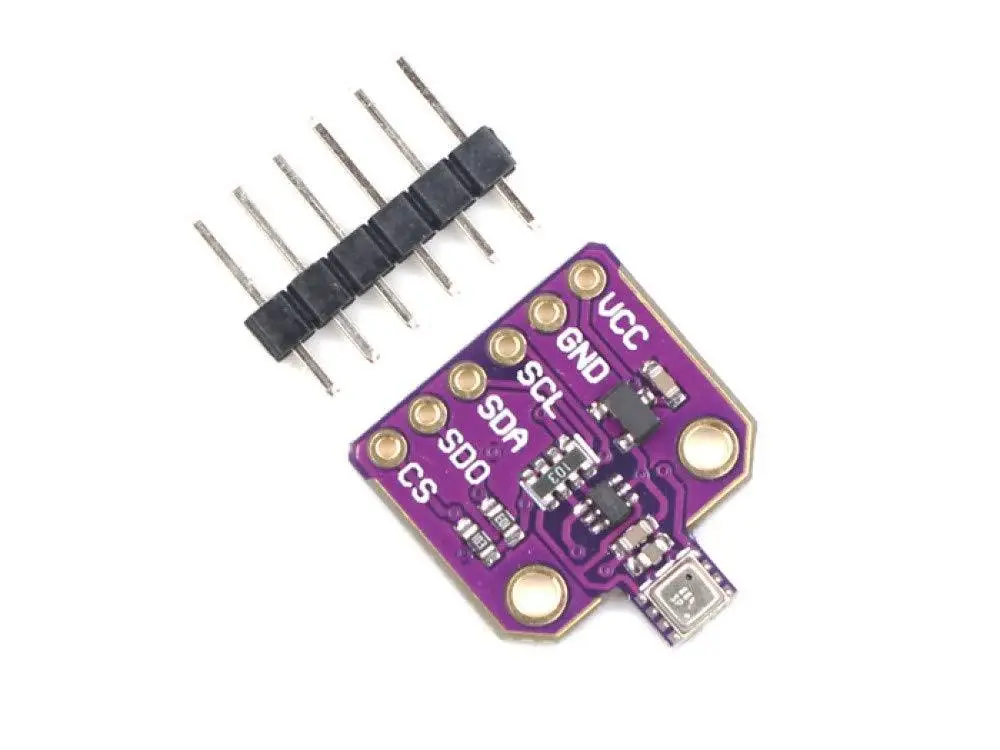

π Pin Configuration
ββββββββββββββββββββββ
β BME680 Module β
ββββββββββββββββββββββ€
β VCC β 3.3V / 5V
β GND β Ground
β SDA β I2C Data
β SCL β I2C Clock
β CS β SPI Select
β SDO β Address select
ββββββββββββββββββββββ
βοΈ Key Specifications
β‘ Voltage: 3.3V β 5V (module), 1.7β3.6V sensor core
π‘ Temperature Range: -40Β°C to +85Β°C
π§ Humidity Range: 0β100% RH (Β±3%)
π¬ Pressure Range: 300β1100 hPa
π Altitude Accuracy: ~Β±1 meter (derived from pressure)
π« IAQ Index: 0β500 (air quality level)
π Interface: I2C / SPI
π Key Features
π 4-in-1 environmental sensing
π High accuracy and resolution
π Low power consumption
π‘ Digital output (easy integration)
π§ Supports air quality estimation (VOC detection)
π¦ Compact MEMS design
π§ͺ Applications
π« Air quality monitoring systems
π Smart home automation
π¦ Weather stations
π± Wearable devices
π Drones & altitude measurement
π§ IoT environmental sensing
π How Altitude Measurement Works
Pressure decreases as altitude increases
Sensor measures pressure β calculates height
π Used in:
ποΈ Altimeters
π Drones
π‘ GPS enhancement systems
β οΈ Important Notes
β οΈ Gas sensor needs burn-in time (few hours to days) for accuracy
β οΈ IAQ values are relative, not absolute pollution levels
β οΈ Sensitive to temperature changes (self-heating effect)
β οΈ Requires libraries (like BSEC) for best air quality data
π¬ From real-world usage (Reddit insight):
βSensor may need calibration for accurate humidity and AQ valuesβ
π BME680 vs Other Sensors
| Sensor | Features |
|---|---|
| BME280 | Temp + Humidity + Pressure |
| BMP280 | Pressure only |
| BME680 | Temp + Humidity + Pressure + Gas (best choice) |
π‘ Pro Tip
For advanced projects:
Use ESP32 + BME680
Add WiFi dashboard (IoT)
π Build your own smart air quality monitoring system
