The Arduino Portenta Machine Control is a professional-grade industrial PLC (Programmable Logic Controller) designed to control machines, automate factories, and connect industrial equipment to IoT and cloud platforms. It combines the power of the Portenta H7 dual-core processor, industrial-level I/O, and secure connectivity in a rugged DIN-rail-mount enclosure.

📊 INFOGRAPHIC OVERVIEW
┌────────────────────────────────────────────┐ │ Arduino Portenta Machine Control │ │ AKX00032 │ ├────────────────────────────────────────────┤ │ 🧠 Processor : Dual-Core Cortex-M7 + M4 │ │ ⚡ Power Input : 24V DC Industrial Supply │ │ 🔌 Digital I/O : 8 Inputs, 8 Outputs │ │ 📊 Analog I/O : 3 Inputs, 4 Outputs │ │ 🔄 Programmable : 12 configurable I/O │ │ 🌐 Connectivity : Ethernet, Wi-Fi, BLE, USB│ │ 📡 Industrial Bus: CAN, RS232, RS422, RS485 │ │ 💾 Memory : 16MB Flash, 8MB SDRAM │ │ 🌡 Temp Range : −40°C to +85°C │ │ 🏭 Mount Type : DIN Rail Industrial Case │ └────────────────────────────────────────────┘

🧠 1️⃣ Powerful Industrial-Grade Processor
⚙️ Portenta H7 Dual-Core MCU
ARM Cortex-M7 core up to 480 MHz
ARM Cortex-M4 core up to 240 MHz
Enables parallel real-time control and communication tasks
✔ High-performance automation
✔ Real-time machine control
✔ Industrial computing capability

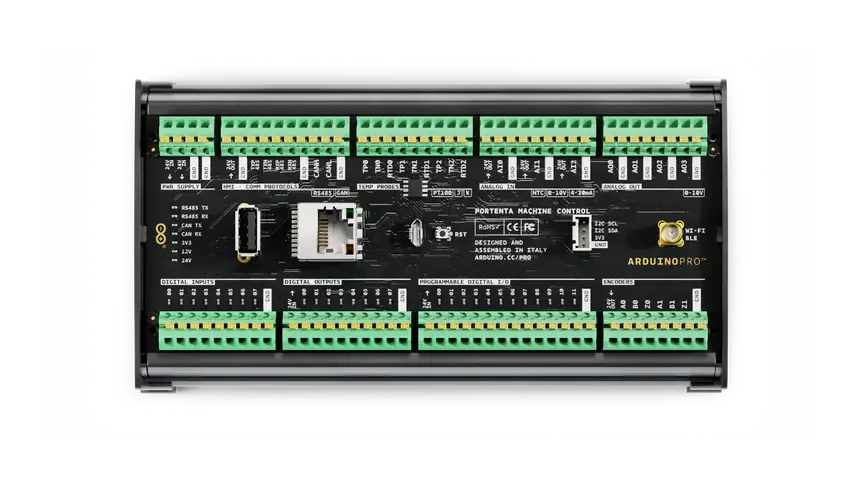

🔌 2️⃣ Industrial Input & Output Interface
Digital I/O
8 digital inputs (24V compatible)
8 digital outputs (up to 0.5A per channel)
12 programmable digital channels
High-side switches with protection
✔ Control motors, relays, actuators
✔ Read switches and sensors
Analog Interface
3 analog inputs:
0–10V
4–20mA
NTC temperature sensors
4 analog outputs:
0–10V control signal
20 mA max per channel
✔ Monitor pressure, temperature, flow
✔ Control industrial analog devices
🌐 3️⃣ Advanced Connectivity Options
USB → Programming and communication Ethernet → Industrial networking Wi-Fi → Cloud connectivity Bluetooth → Wireless control RS232/485 → Industrial device communication CAN Bus → Automotive and industrial networks
Supports modern IoT and legacy industrial protocols.

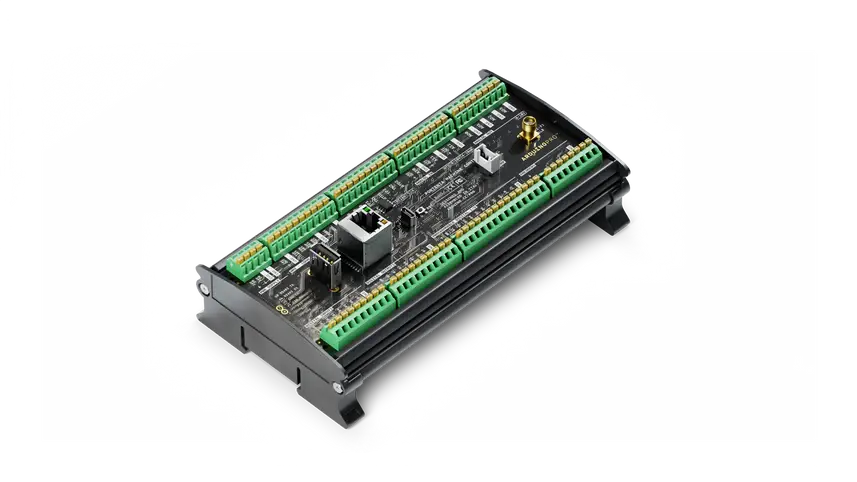

🏭 4️⃣ Industrial-Grade Design

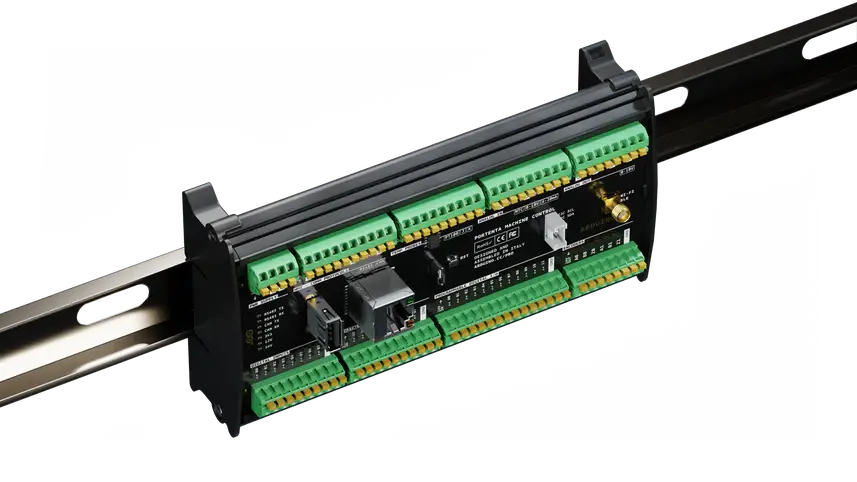

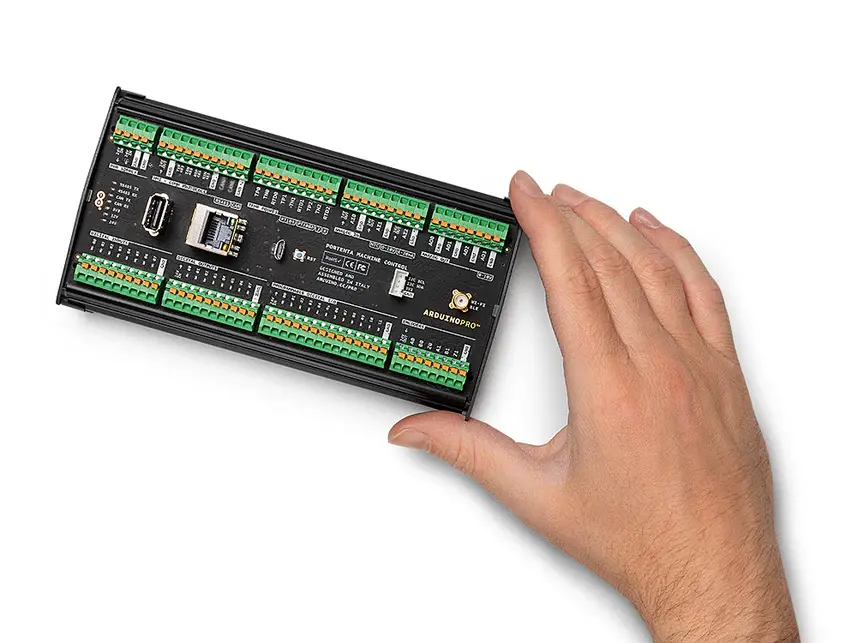

✔ DIN-rail mount enclosure
✔ Push-in terminals for easy wiring
✔ Industrial temperature range −40°C to +85°C
✔ Built-in Real-Time Clock (RTC)
✔ Safety protections and certifications
Perfect for factory environments.
💾 5️⃣ Memory and Storage
16 MB Flash storage
8 MB SDRAM
Secure element chip for encryption
Large memory supports advanced industrial applications
⚡ 6️⃣ Power System
Power Input: 24V DC ±20% Reverse polarity protection Industrial power compatible
Designed for standard industrial power systems.

🏭 7️⃣ Industrial Applications
Used in:
🏭 Factory automation
🤖 Machine control
📦 Packaging machines
🔥 Industrial ovens
🧪 Laboratory equipment
⚙ Conveyor systems
📊 Industrial IoT monitoring
🧩 8️⃣ How It Works (Industrial Automation Flow)
Sensors → Portenta Machine Control → Actuators ↓ Ethernet / Wi-Fi ↓ Cloud / Dashboard

🧠 9️⃣ Key Advantages
✔ True industrial PLC functionality
✔ Arduino programming flexibility
✔ Supports Industry 4.0 and IoT
✔ Highly reliable and secure
✔ Supports legacy and modern machines
📊 10️⃣ Technical Specifications Summary
Feature
Specification
Processor
Dual-core Cortex-M7 + M4
Input voltage
24V DC
Digital Inputs
8
Digital Outputs
8
Analog Inputs
3
Analog Outputs
4
Programmable I/O
12
Connectivity
Ethernet, Wi-Fi, BLE, USB
Industrial Protocols
CAN, RS232, RS485
Flash Memory
16MB
RAM
8MB SDRAM
Operating Temp
−40°C to +85°C
Mounting
DIN rail

🎯 Summary
The Arduino Portenta Machine Control (AKX00032) is a powerful industrial PLC controller designed for factory automation, machine control, and Industry 4.0 systems. With its dual-core processor, industrial I/O, secure connectivity, and rugged design, it serves as a professional solution for industrial automation and IoT integration.
