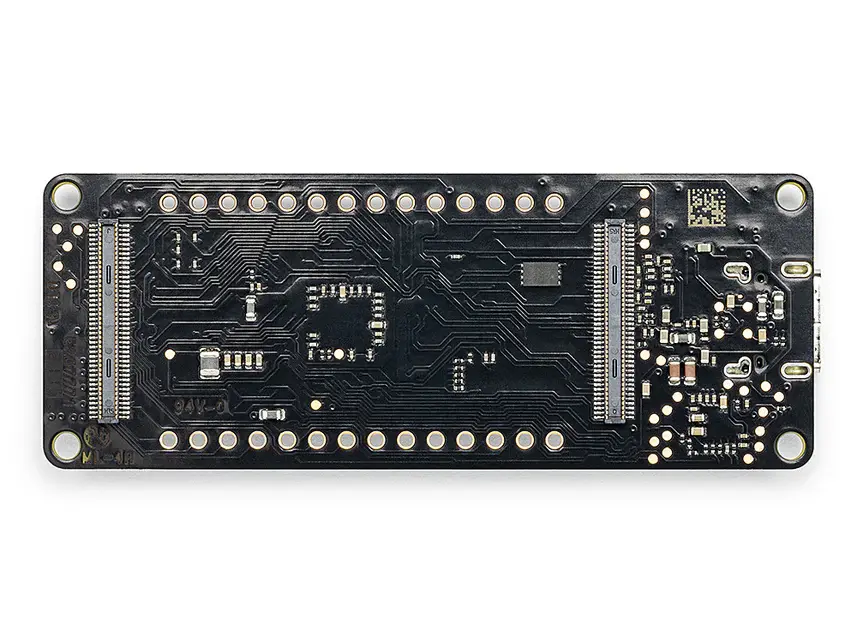

Arduino Portenta H7 Development Board - ABX00042
🧠🔷 **Arduino Portenta H7 — High-Performance Industrial & Edge Computing Board
The Arduino Portenta H7 development board is a powerful, dual-core embedded platform designed for advanced automation, edge AI, industrial control, robotics, and IoT applications. It brings PC-like performance to embedded development in a compact yet industrial-ready form factor.
📊 INFOGRAPHIC OVERVIEW — Arduino Portenta H7 (ABX00042)
Arduino Portenta H7 (ABX00042) | 🧠 MCU | STMicro STM32H747XI | | ⚡ Dual-Core | Cortex-M7 @ 480 MHz + Cortex-M4 @ 240 MHz | | 💾 Flash Memory | 16 MB QSPI Flash | | 🧠 SRAM | 1 MB SDRAM | | 📡 Connectivity | Wi-Fi + Bluetooth (via NINA-W10) | | 📶 Network Interfaces | Ethernet PHY (100-Mbps) | | 📷 Camera / Vision Interface| MIPI DSI | Arducam | | 🧰 Expansion Interfaces | GPIO | UART | SPI | I²C | CAN | PWM | | 🔌 Power | USB-C | VIN | Li-Po Battery | | 📏 Form Factor | Portenta with Header Access |
🧠 1️⃣ Dual-Core Performance
The Portenta H7 uses a dual-core architecture:
🔹 Cortex-M7 @ 480 MHz
✔ High-speed processing for heavy computation
✔ Ideal for signal processing, control loops, AI inference, and multi-tasking🔹 Cortex-M4 @ 240 MHz
✔ Handles timing-critical and background tasks
✔ Efficient for real-time control and peripheral handling👉 Together, these provide a powerful, multitasking embedded computing platform for industrial, robotic, and real-time applications.
📡 2️⃣ Built-In Connectivity
✔ Wi-Fi 802.11 b/g/n – wireless internet connectivity
✔ Bluetooth Low Energy (BLE) – connect to sensors, phones, or gateways
✔ Ethernet (via onboard PHY) – reliable wired networkingThis makes the board suitable for distributed IoT devices, cloud integration, and networked automation.
📦 3️⃣ Memory & Data Handling
| Feature | Specification |
|---|---|
| Flash Memory | 16 MB QSPI |
| SRAM | 1 MB |
| External Storage Support | microSD (via carrier board) |
Large memory enables advanced applications like local data logging, image processing, and in-device learning.
📷 4️⃣ Camera & Vision Ready
✔ MIPI DSI interface
✔ Arducam connector support
This allows interface with high-resolution cameras for computer vision applications — ideal for robotics vision, object tracking, or machine inspection.
🔌 5️⃣ Peripheral I/O & Expansion
The Portenta H7 provides a rich set of interfaces:
| Interface | Use Cases |
|---|---|
| GPIO | General control |
| UART | Serial communication |
| SPI | High-speed data |
| I²C | Sensor hubs |
| PWM | Servo/motor control |
| CAN | Vehicle/industrial bus |
| ADC/DAC | Analog sensors & outputs |
This flexibility makes it suitable for industrial controllers, robotics, and sensing platforms.
🔌 6️⃣ Power Options
✔ USB-C – power & programming
✔ VIN input – external power supply
✔ Li-Po battery support – portable applications
This allows developers to choose between mobile battery projects or stable wired installations.
🛠️ 7️⃣ IDE & Software Support
The Portenta H7 supports:
✔ Arduino IDE / Arduino CLI – easy sketches & prototyping
✔ Mbed OS support – real-time OS for advanced applications
✔ MicroPython / TensorFlow Lite – embedded AI and scripting
✔ CMSIS-DSP, FreeRTOS – professional embedded frameworks
🛠️ 8️⃣ Typical Applications
✅ Industrial Automation Controllers
Control machines, actuators, and sensors in factory setups.
✅ Robotics & Motion Control
Run multiple sensor fusion, real-time control, and AI.
✅ Embedded AI/ML
Process data locally using TensorFlow Lite or custom models.
✅ Computer Vision Projects
Attach camera modules for machine vision and object detection.
✅ IoT Gateways & Multi-sensor Nodes
Connect sensors via Ethernet/Wi-Fi and send to cloud or local dashboards.
🆚 9️⃣ How Portenta H7 Compares
| Feature | Portenta H7 | Arduino Uno |
|---|---|---|
| Architecture | Dual-Core ARM | 8-bit AVR |
| Clock | Up to 480 MHz | 16 MHz |
| Flash | 16 MB | 32 KB |
| RAM | 1 MB | 2 KB |
| Connectivity | Wi-Fi, BLE, Ethernet | Optional |
| Vision Support | Yes | No |
The Portenta H7 delivers orders of magnitude more performance than classic Arduino boards, supporting advanced industrial and AI workloads.
📌 10️⃣ Why Choose Arduino Portenta H7?
✔ Professional-grade performance
✔ Dual-core multitasking
✔ Advanced networking built-in
✔ Rich peripheral connectivity
✔ Vision & ML application ready
✔ Great for robotics, automation, IoT, & edge computing
📘 SUMMARY
The Arduino Portenta H7 (ABX00042) is a powerful, professional development board that bridges Arduino ease of use with industrial performance. Its dual-core ARM cores, large memory, connectivity options, and rich peripheral I/O make it ideal for high-end embedded systems, robotics platforms, IoT solutions, and AI applications.
