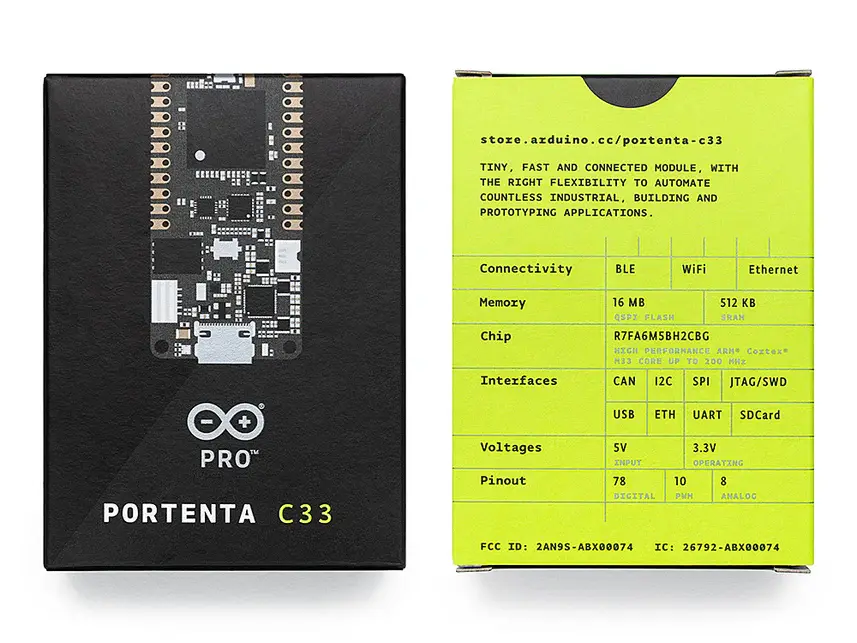

Arduino Portenta C33 Development Board - ABX00074
๐ Arduino Portenta C33 Development Board โ Infographic Overview
Arduino Portenta C33 (ABX00074) | ๐ง Microcontroller | Renesas R7FA6M5BH2CBG (Cortex-M33) | | โก Max Frequency | Up to 200 MHz | | ๐พ Flash Memory | 2 MB onboard | | ๐ง SRAM | 512 KB | | ๐ External Flash | 16 MB QSPI Flash | | ๐ก Connectivity | Wi-Fi 802.11 b/g/n & BLE 5.0 | | ๐ Ethernet PHY | 100 Mbps via onboard PHY | | ๐ Security | NXP SE050C2 Secure Element | | ๐งฐ Interfaces | GPIO, I2C, SPI, UART, CAN, ADC, SD | | ๐ USB | USB-C (High Speed) | | ๐งฐ Debug | JTAG / SWD | | ๐ Form Factor | Portenta + MKR compatible | | ๐ก๏ธ Operating Temp | -40 ยฐC to +85 ยฐC |
๐ง 1. High-Performance 32-bit MCU
Renesas R7FA6M5BH2CBG โ ARM Cortex-M33 core up to 200 MHz.
Efficient for real-time control, signal processing, and AI inference.
Built-in Arm TrustZoneยฎ and Secure Crypto Engine for robust security.
๐ Powerful yet low-power profile makes it ideal for battery-powered IoT deployments.
๐ก 2. Built-In Connectivity
Wi-Fi (2.4 GHz 802.11 b/g/n) โ for cloud integration and remote access.
Bluetooth 5.0 (LE) โ low-energy wireless communication.
100 Mbps Ethernet PHY โ wired connectivity for industrial use.
These features make the Portenta C33 perfect for connected gateways, remote sensors, and edge computing.
๐ 3. Security & OTA Updates
โ NXP SE050C2 Secure Element for hardware-level protection and secure enrollment.
โ Secure boot & encrypted communication
โ Over-the-air (OTA) firmware updates via Arduino IoT Cloud or third-party services.
This protects devices against tampering, theft, and unauthorized access โ a key requirement for industrial IoT.
๐ 4. Rich Peripheral Interfaces
The Portenta C33 exposes a wide range of interfaces for flexible systems:
Digital I/O / GPIO โ general control and sensors.
Analog ADC & DAC โ analog sensor reading and waveform output.
UART, SPI, IยฒC โ standard communication buses.
CAN bus โ automotive/industrial networking.
SDCard, IยฒS audio, SPDIF โ media and expansion support.
JTAG / SWD โ professional debugging.
This makes it suitable for advanced automation, data acquisition, and real-time applications.
๐ 5. Flexible Power Supply
The Portenta C33 can be powered through:
USB-C (both power & data).
Single-cell 3.7 V Li-Po / Li-Ion battery (via onboard connector).
External supply via MKR-style pins.
Suitable for portable IoT nodes or grid-connected systems.
๐ค 6. Flexible Development & Ecosystem Support
โ Compatible with Arduino IDE, Arduino CLI, and MicroPython ๐ง โ allowing both traditional C/C++ and high-level code development.
โ Works with Portenta and MKR headers/carrier boards โ expands functionality with shields.
โ Large open ecosystem with libraries and IoT services.
๐ ๏ธ 7. Ideal Use Cases
| Application | Description |
|---|---|
| ๐ Industrial IoT Gateway | Bridge sensors to cloud dashboards |
| ๐ Remote Monitoring | Asset tracking, environment sensing |
| ๐ญ Automation & Control | Real-time machine & energy control |
| ๐ง Edge Computing | Local data processing & decisions |
| ๐ฆ Smart City & Agriculture | Connected infrastructure & sensors |
The combination of secure connectivity and processing power makes it great for professional embedded solutions.
๐ Summary
The Arduino Portenta C33 is a compact but powerful IoT-focused microcontroller board featuring:
32-bit ARMยฎ Cortex-M33 at 200 MHz for real-time processing.
Wi-Fi, Bluetooth LE, and Ethernet connectivity.
Hardware security and OTA update support.
Extensive I/O interfaces and debugging features.
Flexible development support with Arduino and MicroPython tools.
๐ Itโs ideal for industrial IoT, automation, edge AI, and connected embedded systems.
