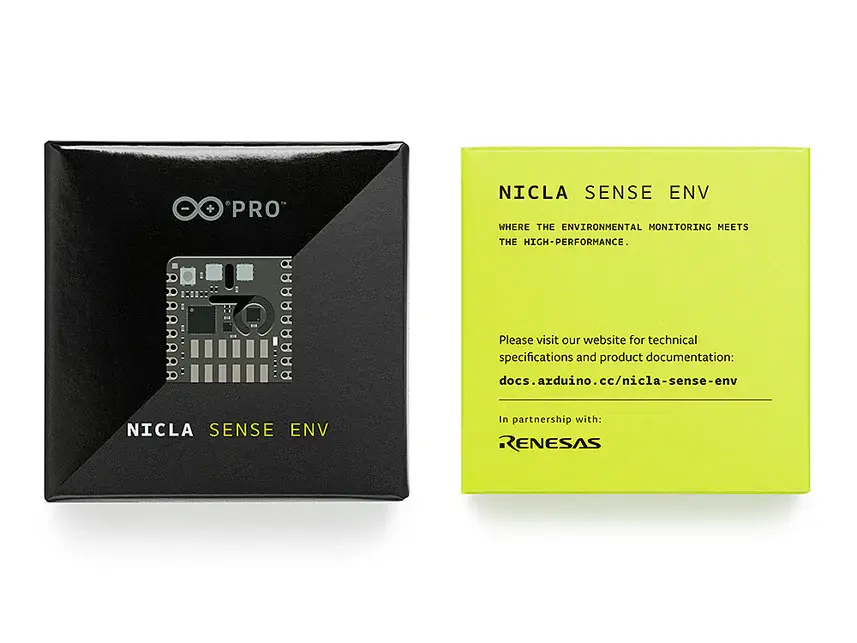

Arduino Nicla Sense Env Microcontroller Board - ABX00089
🌍 What It Is
The Nicla Sense Env is a compact environmental sensor board that brings industrial-grade sensing to your Arduino ecosystem. It integrates multiple advanced sensors to deliver real-time indoor/outdoor environmental data such as temperature, humidity, air quality (TVOC, CO₂), and harmful gases (NO₂, O₃). It’s perfect for smart building systems, IoT monitoring, climate control, and automated safety projects.
🧠 Infographic Summary
NICLA SENSE ENV (ABX00089) |📦 Type | Environmental Sensor Expansion | 📏 Dimensions | 22.86 × 22.86 mm | 🧠 MCU (Onboard) | Renesas RA2E1 ARM Cortex-M23 | | | 48 MHz, 128 KB Flash, 16 KB SRAM | 🌡️ Temp & Humidity Sensor | HS4001 (ultra-low power) | 🛰 Air Quality Sensors | ZMOD4410AI1V (TVOC/CO₂) | | | ZMOD4510AI1V (NO₂/O₃) |🔌 Interfaces | I²C / ESLOV, UART, SPI, ADC ×2 |🔋 Power Source | From host board (Portenta/MKR) |⚡ Ultra-Low Power | Ideal for 24/7 sensory monitoring | 🛠️ Compatible with | Arduino Portenta & MKR ecosystem | 🌦️ Key Uses | Air quality, temp/humidity sensing |
📊 Key Features Explained
🧪 Advanced Environmental Sensing
The board integrates three Renesas sensors:
✔ HS4001 — ultra-low power, precise temperature & humidity readings.
✔ ZMOD4410AI1V — AI-enabled indoor air quality sensor for TVOC & CO₂ estimations.
✔ ZMOD4510AI1V — monitors NO₂ and O₃ for outdoor or polluted air detection.🔧 Small but Powerful
Form factor: Only ~22.86 × 22.86 mm — extremely compact for integration into space-limited applications.
Onboard MCU: Powered by a Renesas RA2E1 Cortex-M23 microcontroller (48 MHz), with 128 KB flash and 16 KB RAM — although this MCU is part of the sensor board and is not user-programmable.
🔌 Interfaces & Connectivity
Communicates with your host board via ESLOV (I²C) or through header/castellated pins.
Supports UART, SPI, and multiple ADC channels — enabling diverse integration options.
💡 Ultra-Low Power & Always-On
Designed for 24/7 monitoring, the board consumes very little power — perfect for battery-powered IoT air quality stations and long-term deployments.
🧠 Software & Integration
✔ Arduino IDE Support: Works with standard Arduino libraries for environment and sensor data collection.
✔ MicroPython Support: You can also program through MicroPython for quick prototyping.
✔ Tutorials & Examples: Multiple examples are available in Arduino docs and online guides to help you get started.
🌍 Typical Projects
🔹 Smart HVAC & Climate Control: Automatically adjust air handling based on real-time conditions.
🔹 IoT Air Quality Monitoring: Send sensor data to dashboards or cloud for tracking and alerts.
🔹 Industrial Safety Detection: Detect harmful gasses (NO₂, O₃) for early warnings in factories or labs.
🔹 Environmental Research & Prototyping: Create portable units for environmental studies or academic projects.
📐 Technical Specs At a Glance
| Specification | Detail |
|---|---|
| MCU | Renesas RA2E1 ARM Cortex-M23 (48 MHz) |
| Memory | 128 KB Flash, 16 KB SRAM |
| Dimensions | 22.86 × 22.86 mm |
| Sensors | HS4001, ZMOD4410AI1V, ZMOD4510AI1V |
| Interfaces | I²C (ESLOV), UART, SPI, 2× ADC |
| Power | From host (3.3 V) |
| Operating Temp | −40 °C to 85 °C |
| Weight | ≈ 2 g |
🧠 Why It Matters
The Nicla Sense Env turns any compatible Arduino project into a smart environmental sensor node without the need for external breakout boards or complex multi-sensor setups. Its compact size, low power consumption, and industrial sensors make it ideal for embedded IoT deployments, environmental monitoring, and safety applications.
