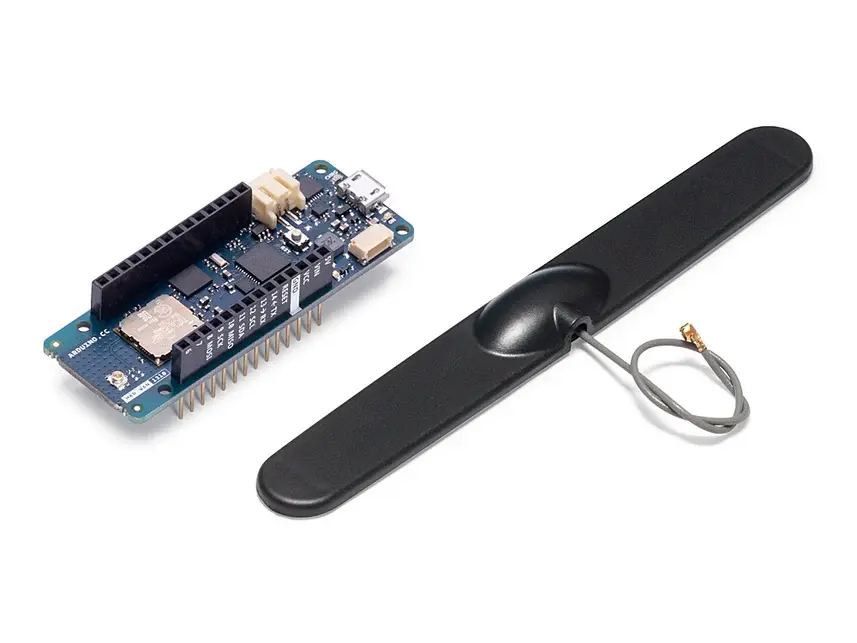

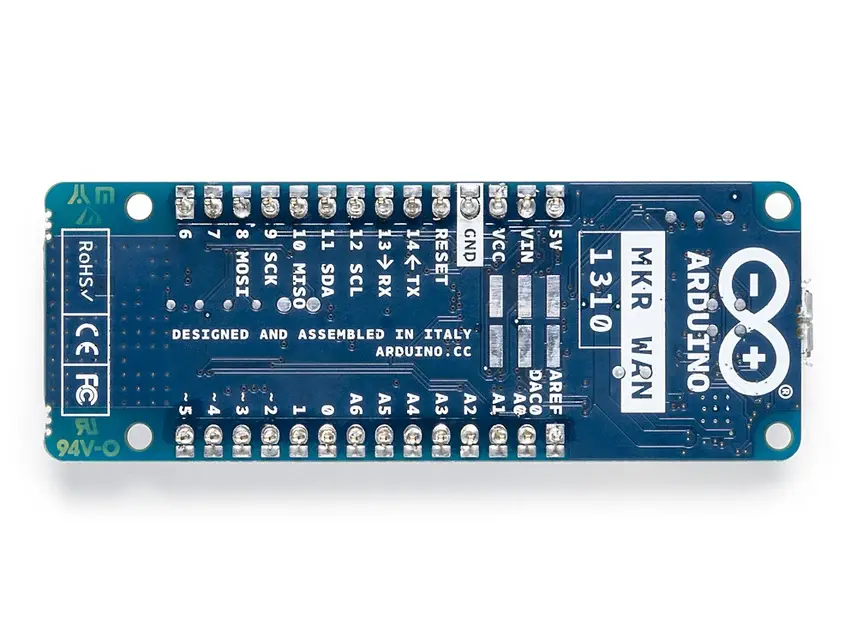

Arduino MKR WAN 1310 Development Board - ABX00029

Arduino MKR WAN 1310 Infographic Summary

Arduino MKR WAN 1310 (ABX00029) | MCU | SAMD21 Cortex-M0+ (32-bit ARM) | | Clock Speed | Up to 48 MHz | | Flash Memory | 256 KB internal + 2 MB external | | SRAM | 32 KB | | Secure Element | ATECC508 Crypto Chip | | Radio Module | Murata CMWX1ZZABZ (LoRa) | | Frequency Bands | 433 / 868 / 915 MHz | | Connectivity | LoRaWAN / LoRa peer-to-peer | | Power Supply | USB/VIN 5 V, Li-Po / Li-Ion | | I/O Pins | 8 Digital, 7 Analog, PWM, UART, SPI, I2C | | Operating Voltage | 3.3 V | | Form Factor | Compact MKR (67.6 25 mm) | | Weight | ~32 g |

1 What It Is

The MKR WAN 1310 is a member of the Arduino MKR family designed for low-power wide-area network (LPWAN) communicationremote sensor nodes, IoT stations, and long-range wireless projects.

2 Long-Range Wireless (LoRa) Technology

Uses Murata CMWX1ZZABZ LoRa module to connect over long distances (hundreds of meters to kilometers). LoRaWAN protocol compatibility works with gateways like Arduino Pro Gateway and networks like The Things Network. Can also operate in peer-to-peer LoRa mode for direct board-to-board communication.

LoRa is ideal for:

• Agricultural sensors

• Environmental monitoring

• Asset tracking

• Remote control devices

• Smart city nodes

3 Low Power & Battery Ready

The board supports rechargeable Li-Po/Li-Ion batteries (1024 mAh) for long operation without mains power.months or years depending on use.

4 Advanced Security

ATECC508 secure element hardware-based key storage and encryption. Protects credentials, certificates, and communication crucial for secure IoT deployments.

5 Microcontroller & Performance

This combination gives a balance of power and low consumption for embedded tasks.

6br

13 PWM Channels

7 Analog Inputs

1 Analog Output (DAC)

UART, SPI, I2C

External Interrupts

Great for sensors, actuators, and real-world data acquisition.

The board's logic is 3.3 V do not apply 5 V directly to I/O pins.

7 Long-Range Frequencies

The LoRa module supports common regional bands:

• 868 MHz (Europe)

• 915 MHz (USA)

• 433 MHz (Asia & others)

Make sure your application uses the correct frequency and complies with local regulations.

8 Typical Use Cases

Battery-powered remote sensor nodes Environmental &ampaWAN IoT networks Long-distance control systems Arduino IoT Cloud integration

9 Why Use MKR WAN 1310?

LoRa connectivity without extra shields Low power design for long battery life Secure communication hardware Arduino ecosystem support (IDE & IoT Cloud) Compact & lightweight for embedded applications

Perfect for makers, students, and IoT engine
