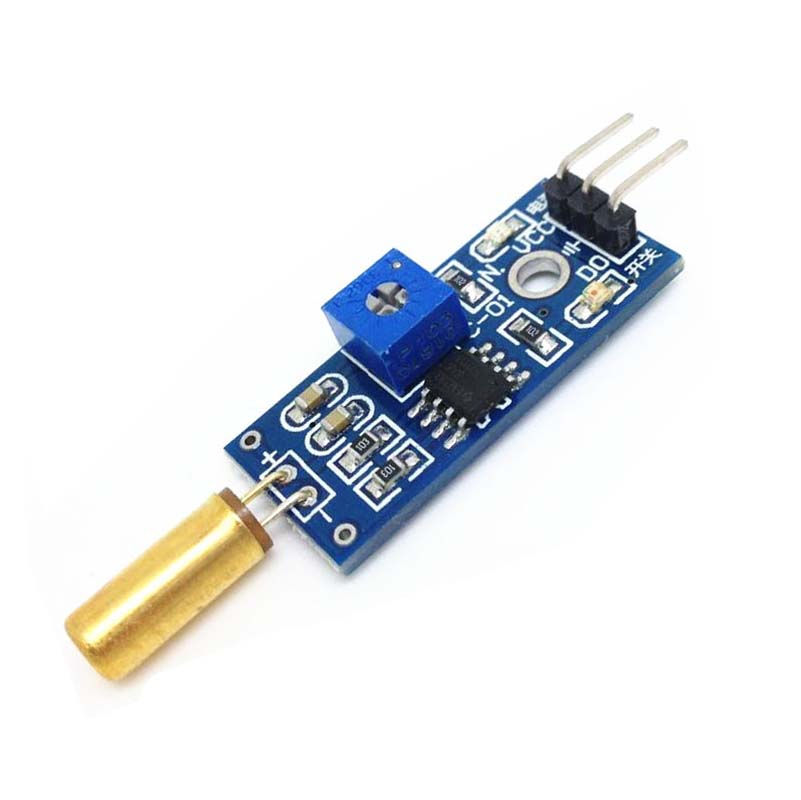

Tilt Sensor Module

🔄 Tilt Sensor Module – Complete Guide with Infographic
📌 Overview
A Tilt Sensor Module is a simple electronic device that detects orientation or inclination. It tells whether an object is tilted or upright by opening or closing an internal contact.
🧠 How It Works
Inside the module, there is usually a metal ball or mercury switch:
⚪ Ball Type (common & safe)
When tilted, the metal ball rolls and completes or breaks the circuit.
💧 Mercury Type (less common, toxic)
Mercury flows to connect contacts when tilted.
👉 Output changes depending on the angle of the sensor.
📊 Infographic Summary
┌──────────────────────────────┐
│ 🔄 TILT SENSOR MODULE │
├──────────────────────────────┤
│ 🎯 Function: Detect tilt │
│ ⚡ Voltage: 3.3V – 5V │
│ 🔌 Output: Digital (HIGH/LOW)│
│ 📐 Detection: Angle change │
│ 🧩 Type: Ball / Mercury │
│ 🔄 Response: On/Off switch │
└──────────────────────────────┘
🔌 Pin Configuration (Typical Module)
┌─────────────┐
│ Tilt Sensor │
├─────────────┤
│ VCC → Power (3.3V/5V)
│ GND → Ground
│ DO → Digital Output
└─────────────┘
⚙️ Working Logic
Position
Output
Upright
LOW / HIGH (depends on module)
Tilted
HIGH / LOW (opposite state)
✔ Works like a simple switch
✔ Some modules include a comparator (LM393) for stable output
🔍 Key Features
🎯 Detects tilt or motion
⚡ Low power consumption
🔧 Easy to use with microcontrollers
💰 Low cost
📦 Compact size
🧪 Common Applications
📱 Mobile orientation detection
🚨 Anti-theft alarm systems
🤖 Robotics balance detection
🎮 Game controllers
🚗 Vehicle tilt warning systems
🧸 Toys and smart gadgets
🔗 Interfacing with Microcontrollers
Works easily with:
🍓 Raspberry Pi
🔵 Arduino
📡 ESP32 / ESP8266
👉 Simply read the digital pin to detect tilt.
⚠️ Limitations
❌ Not precise angle measurement
❌ Sensitive to vibration
❌ Mechanical wear over time
🆚 Tilt Sensor vs Accelerometer
Feature
Tilt Sensor
Accelerometer
Output
Digital (ON/OFF)
Analog/Digital
Accuracy
Low
High
Cost
Very Cheap
Moderate
Complexity
Simple
Complex
💡 Pro Tip
If you need:
✔ Simple ON/OFF tilt detection → Use Tilt Sensor
✔ Exact angle & motion tracking → Use Accelerometer
