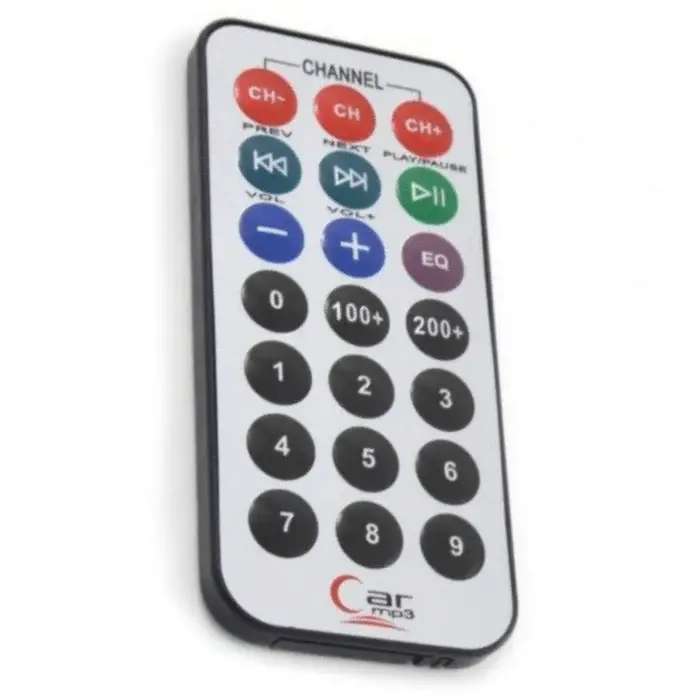

IR Remote

🧠 What Is an IR Remote?
An IR remote is a device that sends commands to electronic devices using infrared light signals.
Widely used for TVs, air conditioners, projectors, robots, and Arduino/ESP projects.
Works by emitting IR pulses at specific frequencies, which are received and decoded by an IR sensor on the device.
🔍 Key Components
IR LED (Transmitter)
Emits pulses of infrared light (~940 nm wavelength).
Encodes data in modulated on/off signals (commonly at 38 kHz).
IR Receiver Module
Usually has three pins: VCC, GND, and OUT.
Detects IR signals from the remote and outputs digital pulses for microcontroller reading.
Microcontroller / Device
Interprets the received signal and executes corresponding commands (e.g., volume up, switch channel).
📌 Features & Advantages
Wireless Control – No physical connection needed between remote and device.
Low Power – IR LEDs consume very little energy.
Simple Protocols – Uses standard codes like NEC, RC5, Sony SIRC, which are easy to decode with Arduino/ESP32.
Affordable – Both remotes and receivers are inexpensive and widely available.
🧪 How It Works
Button Press on Remote → Microcontroller inside remote modulates IR LED signal.
Signal Transmission → IR pulses travel in line of sight to the receiver.
Receiver Module → Detects pulses and converts to a digital signal.
Device Interpretation → Microcontroller decodes signal and performs the action.
⚠️ Important Notes
Line of Sight Required – IR signals generally do not pass through walls.
Range – Typically 5–10 meters, depending on LED power and ambient light.
Ambient Light Interference – Sunlight or bright lamps can interfere; many receivers use 38 kHz modulation to reduce noise.
Protocols Must Match – Remote and receiver must use the same encoding scheme (NEC, RC5, etc.).
🛠 Common Uses in DIY Projects
TV, fan, or appliance remote control projects
Robot movement control using an IR remote
Home automation systems with Arduino or ESP32
IR-based digital data transmission experiments
