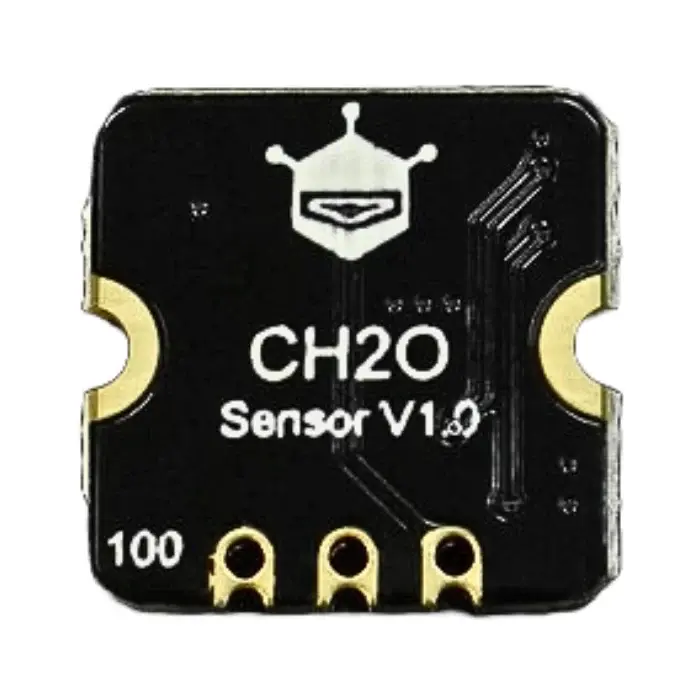

Fermion MEMS Formaldehyde HCHO Gas Detection Sensor

🔍 What this sensor is
The Fermion MEMS Formaldehyde (HCHO) Gas Detection Sensor (DFRobot) is a compact gas sensor designed to detect:
🧪 Formaldehyde (HCHO) – a harmful indoor pollutant
👉 It’s commonly used in:
Air purifiers
Indoor air quality systems
HVAC systems
🧠 Core Concept (VERY IMPORTANT)
👉 This is a MEMS-based gas sensor
Detects formaldehyde concentration changes
Outputs analog signal (not direct ppm display)
⚠️ Important:
It provides qualitative measurement (trend), not highly accurate lab-grade values
⚙️ Key Specifications
Gas detected: Formaldehyde (HCHO)
Detection range: 0 – 3 ppm
Output: Analog voltage
Operating voltage: 3V – 5V
Current consumption: <20 mA
Size: ~13 × 13 × 2.5 mm
Lifespan: ~3 years
⚡ Working Principle
Uses MEMS gas sensing technology
Formaldehyde gas changes sensor resistance
Circuit converts it to analog voltage output
👉 More HCHO → larger signal change
🔌 Pinout (Typical Fermion Breakout)
VCC → 3.3V / 5V
GND → Ground
AOUT → Analog output
👉 Connect AOUT → Arduino analog pin (A0)
🧠 Key Features
✔️ High sensitivity to formaldehyde
✔️ Fast response & recovery
✔️ Low power consumption
✔️ Compact MEMS design
✔️ Easy to integrate with Arduino
💡 Applications
🏠 Indoor air quality monitoring
🪑 Furniture emission detection (formaldehyde from wood/paint)
🌬️ Air purifiers
🏭 HVAC systems
🤖 Smart environment monitoring
⚠️ Important Notes (VERY IMPORTANT)
❗ 1. Not highly accurate
Provides relative readings, not exact ppm
For precise measurement → use electrochemical sensors
❗ 2. Cross-sensitivity
May respond to:
Alcohol
VOC gases
👉 Not 100% selective
❗ 3. Needs calibration
Must calibrate baseline in clean air
❗ 4. Environmental sensitivity
Avoid:
High humidity
Corrosive gases
Silicone vapors
🆚 MEMS vs Electrochemical HCHO Sensors
Feature
MEMS (Fermion)
Electrochemical
Accuracy
Low–Medium
⭐ High
Cost
Cheap
Expensive
Output
Analog
Calibrated ppm
Use
IoT / hobby
Professional
👍 When to use this
Use this sensor if you want:
Low-cost formaldehyde detection
Air quality trends
DIY air monitoring projects
👎 When NOT to use
Avoid if:
You need accurate ppm measurement
Medical / safety-critical applications
🧠 Final Understanding
👉 This sensor = “formaldehyde presence detector (trend-based)”
👉 Good for IoT projects, not lab-grade accuracy
🚀 Pro Tip (Very Useful)
👉 Best combo for air quality system:
SHT41 → Temperature + Humidity
ENS160 / SGP40 → VOC
HCHO sensor → Formaldehyde
➡️ Together = complete indoor air monitoring system 🔥
