Arduino Due Original A000062

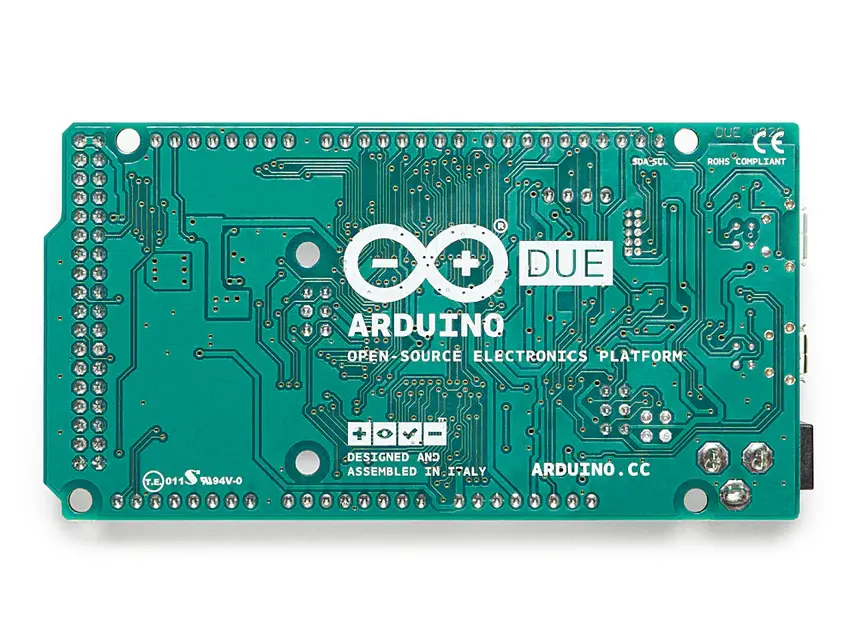

Arduino Due with Headers Original Arduino Due Board (A000062)

A high-performance Arduino designed for advanced embedded projects, robotics, data acquisition, and real-time control based on a 32-bit ARM microcontroller, unlike classic 8-bit Arduinos.

1 What It Is

The Arduino Due is a 32-bit ARM Cortex-M3 microcontroller board, marking one of the most capable boards in the Arduino lineup for complex computing tasks such as advanced sensor systems, real-time data processing, and embedded automation.

Unlike traditional Arduino boards (e.g., Uno / Nano), the Due offers more processing power, memory, and I/O flexibility making it ideal when your project outgrows 8-bit boards.

2 Key Features Explained

32-Bit ARM Cortex-Mt chips. 84 MHz clock speed, giving faster execution for complex tasks. Integrated DMA controller to offload memory-heavy operations.

Memory & Storage

These memory sizes let you build larger, more sophisticated sketches than typical Arduino boards.

I/O & Interfaces

• 54 Digital I/O pins extensive connectivity for LEDs, sensors, actuators.

• 12 PWM pins for motor speed control, dimming LEDs.

• 12 Analog Inputs read varying voltages from s true analog signals (not just PWM).

• 4 UART hardware serial ports for multiple connections.

• I2C & SPI standard communication for modules.

• USB OTG support connect USB devices or act as USB host.

3 Voltage & Power

The Due operates at 3.3 V logic not 5 V tolerant. Supplying 5 V to any I/O pin can damage the board.

• Operating Voltage: 3.3 V.

• Input Voltage (VIN): 712 V recommended.

• Powered via Micro-USB or external supply.

4 Why It Matters

Compared to traditional Arduino boards like Uno/Nano, the Due offers:

More performance for data-heavy tasks (e.g., signal processing, robotics). Larger memory supports bigger sketches and more variables. More I/O pins ideal for multidrop systems or many sensors. DAC outputs analog output without additional circuitry.

5 Typical Projects / Applications

Advanced Robotics multi-sensor control, autonomous movement. Real-Time Data Logger high-speed sensor read, processing, storage. Audio Processing DAC outputs for sound projects. USB OTG Devices connect keyboards, drives, etc. Automation Systems industrial control, CNC interfacing.

6 Getting Started (Quick Steps)

• Install Arduino IDE on your computer.

• ex-M3).

• Write and upload your first sketch (e.g., Blink).

• Use extended I/O and features for more complex programs.

Summary

Arduino Due with Headers is a 32-bit ARM-powered Arduino board built for advanced embedded systems, offering more processing power, memory, and I/O flexibility than traditional Arduino boards. It's perfect for projects requiring real-time performance, multiple sensors, DAC outputs, and complex control systems ideal for students, hobbyists, and prof
