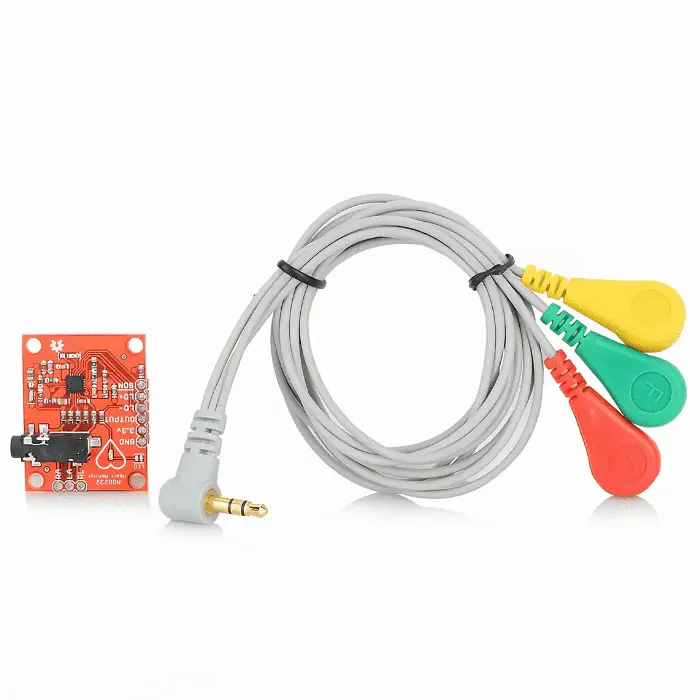

AD8232 ECG Module Heart Rate Monitor Kit

🧠 What Is the AD8232 ECG Module?
A single‑lead ECG (electrocardiogram) sensor module used to measure the electrical activity of the heart.
Based on the AD8232 analog front‑end IC from Analog Devices, designed for biopotential signal acquisition.
Popular in DIY electronics, wearable projects, and bio‑signal learning kits.
🔍 Key Features
• Signal Conditioning Included
– Amplifies and filters weak ECG signals for clearer output.
• Analog Output
– Provides a continuous voltage signal that represents heart electrical activity.
• Low‑Power Operation
– Typically runs at 3.3 V, suitable for battery‑powered or embedded systems.
• Compact Size
– Small board footprint makes it easy to integrate into prototype and wearable designs.
• Lead‑Off Detection Pins
– Detects if electrode connections are missing or loose.
• Multiple Pins for Easy Integration
– Includes pins such as OUTPUT, 3.3 V, GND, RA, LA, RL, and SDN.
• Blinking Heartbeat LED (on some kits)
– Indicates heartbeats visually without coding.
• Compatible with Microcontrollers
– Works with Arduino, ESP32, Raspberry Pi (with ADC), and other controllers.
🧪 How It Works
Attach ECG Electrodes
– Electrodes are placed on the body (usually right arm, left arm, right leg).
Module Amplifies Signals
– Biopotential signals (very small voltages) are filtered and amplified.
Output to Controller
– The analog signal is read by an ADC pin on a microcontroller.
Software Processing
– Microcontroller code processes the waveform and calculates heart rate or displays ECG graph.
📌 Typical Uses
DIY ECG Monitor Displays – Plot waveforms on screens or Serial Plotter.
Heart Rate Detection Projects – Extract beat timing for pulse calculation.
Bio‑Signal Learning Tools – Educational projects on ECG and electronics.
Wearable Prototypes – Portable heart sensing when paired with Bluetooth or Wi‑Fi controllers.
⚠️ Important Notes
Not a Medical Device
– These are hobby/educational modules, not certified for clinical diagnosis or treatment.
Electrode Placement Matters
– Poor contact or incorrect positioning can cause noise, incorrect readings, or no signal.
Noise and Interference
– Environmental noise (like mains hum) and poor wiring can affect signal quality, so proper grounding and cable routing help.
Requires External Processing
– You’ll need a microcontroller, code, and possibly filtering to get useful heart rate or ECG graphs.
🛠 Typical Connections (Concept Only)
RA (Right Arm Electrode) → ECG lead
LA (Left Arm Electrode) → ECG lead
RL (Right Leg / Reference) → Reference electrode / ground
OUTPUT → Analog input on microcontroller
3.3 V & GND → Power supply
